RS: Random Slope#
Setup and Imports#
import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import tensorflow_probability.substrates.jax.distributions as tfd
import liesel_gam as gam
# import data from R
from ryp import r, to_py
r("library(mgcv)")
r("data(columb)")
r("data(columb.polys)")
columb = to_py("columb", format="pandas").reset_index()
polys = to_py("columb.polys", format="numpy")
Loading required package: nlme
This is mgcv 1.9-3. For overview type 'help("mgcv-package")'.
columb.head()
| index | area | home.value | income | crime | open.space | district | x | y | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0.309441 | 80.467003 | 19.531 | 15.725980 | 2.850747 | 0 | 8.827218 | 14.369076 |
| 1 | 1 | 0.259329 | 44.567001 | 21.232 | 18.801754 | 5.296720 | 1 | 8.332658 | 14.031624 |
| 2 | 2 | 0.192468 | 26.350000 | 15.956 | 30.626781 | 4.534649 | 2 | 9.012265 | 13.819719 |
| 3 | 3 | 0.083841 | 33.200001 | 4.477 | 32.387760 | 0.394427 | 3 | 8.460801 | 13.716962 |
| 4 | 4 | 0.488888 | 23.225000 | 11.252 | 50.731510 | 0.405664 | 4 | 9.007982 | 13.296366 |
Model Definition#
Setup response model#
df = columb
tb = gam.TermBuilder.from_df(df)
loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)
y = lsl.Var.new_obs(
value=df.crime.to_numpy(),
distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
name="y",
)
loc += tb.rs("income", cluster="district", factor_scale=True)
Build and plot model#
model = lsl.Model([y])

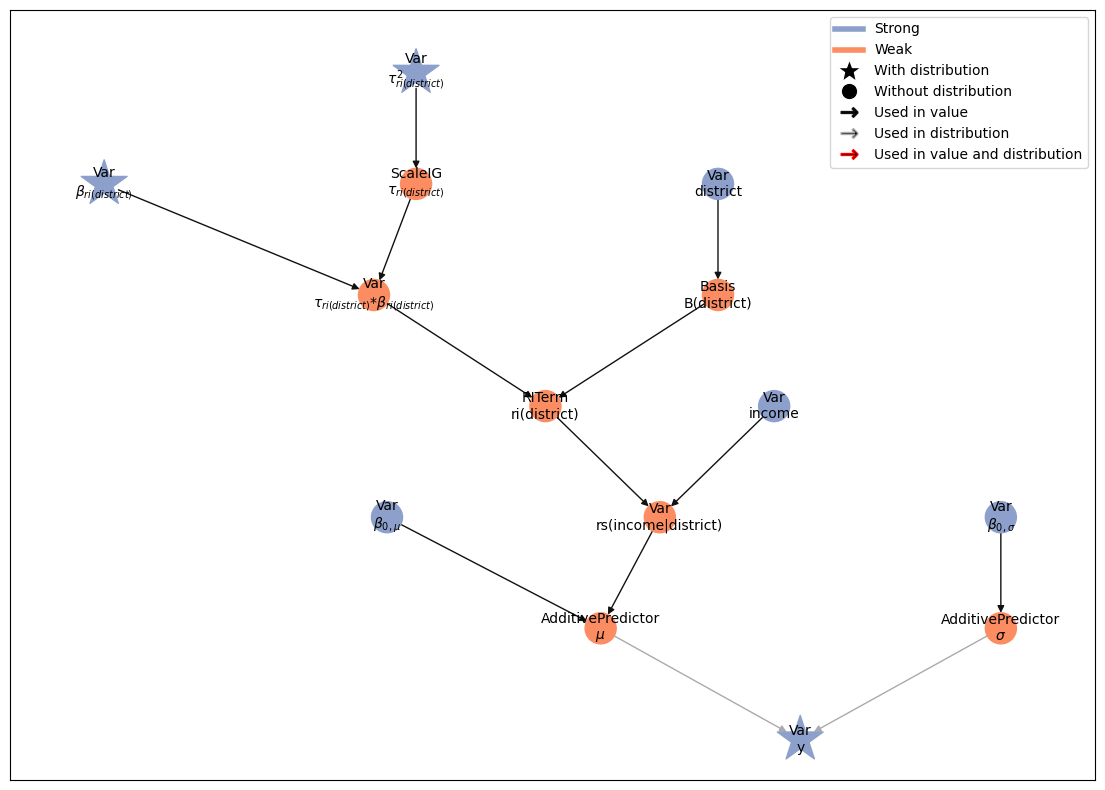

model.plot_vars()
liesel.model.model - INFO - Converted dtype of Value(name="y_value").value
Run MCMC#
eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)
eb.add_burnin(3000)
eb.add_posterior(10_000, thinning=10)
engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()
liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{ri(district)}$', '$\\tau_{ri(district)}^2$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: BURNIN, 3000 transitions, 1000 jitted together
100%|██████████████████████████████████████████| 3/3 [00:02<00:00, 1.13chunk/s]
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 10000 transitions, 1000 jitted together
100%|████████████████████████████████████████| 10/10 [00:00<00:00, 12.22chunk/s]
liesel.goose.engine - INFO - Finished epoch
MCMC summary#
summary = gs.Summary(results)
summary
Parameter summary:
| kernel | mean | sd | q_0.05 | q_0.5 | q_0.95 | sample_size | ess_bulk | ess_tail | rhat | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| parameter | index | ||||||||||
| $\beta_{0,\mu}$ | () | kernel_01 | 35.205700 | 2.449469 | 31.168429 | 35.229168 | 39.283052 | 4000 | 3924.292316 | 4030.000052 | 1.000404 |
| $\beta_{0,\sigma}$ | () | kernel_00 | 2.814785 | 0.107803 | 2.643978 | 2.813509 | 2.996415 | 4000 | 2356.963316 | 2905.203126 | 1.000539 |
| $\beta_{ri(district)}$ | (0,) | kernel_02 | -0.149550 | 1.011764 | -1.793733 | -0.162534 | 1.539376 | 4000 | 3367.928786 | 3773.725689 | 1.000630 |
| (1,) | kernel_02 | -0.156694 | 0.999332 | -1.818371 | -0.171744 | 1.461504 | 4000 | 3155.740826 | 3735.610473 | 1.000427 | |
| (2,) | kernel_02 | -0.022470 | 1.005256 | -1.675336 | -0.038248 | 1.637338 | 4000 | 3503.473663 | 3574.118301 | 1.001032 | |
| (3,) | kernel_02 | 0.020327 | 0.989178 | -1.587049 | 0.015807 | 1.639589 | 4000 | 3517.764780 | 3762.809801 | 1.000361 | |
| (4,) | kernel_02 | 0.062295 | 0.974226 | -1.544892 | 0.074181 | 1.672216 | 4000 | 3332.056868 | 3729.830537 | 1.000939 | |
| (5,) | kernel_02 | -0.067607 | 0.996991 | -1.695521 | -0.083134 | 1.582862 | 4000 | 3519.030512 | 3922.129330 | 0.999627 | |
| (6,) | kernel_02 | -0.140477 | 1.010062 | -1.803054 | -0.131058 | 1.529071 | 4000 | 3097.072549 | 3665.523298 | 1.001043 | |
| (7,) | kernel_02 | 0.015098 | 0.994286 | -1.572399 | 0.010808 | 1.668436 | 4000 | 3328.965457 | 3847.687621 | 0.999965 | |
| (8,) | kernel_02 | -0.029623 | 0.979467 | -1.659029 | -0.009136 | 1.546134 | 4000 | 3340.362424 | 3843.223659 | 1.000080 | |
| (9,) | kernel_02 | -0.007052 | 1.001350 | -1.669084 | -0.008519 | 1.670057 | 4000 | 3311.713423 | 3738.028882 | 1.000227 | |
| (10,) | kernel_02 | 0.105332 | 0.981781 | -1.514487 | 0.111449 | 1.672988 | 4000 | 3363.686726 | 3705.502605 | 1.000872 | |
| (11,) | kernel_02 | 0.096634 | 0.985696 | -1.517471 | 0.102809 | 1.716055 | 4000 | 3403.561674 | 3507.783298 | 1.000189 | |
| (12,) | kernel_02 | 0.021292 | 0.983049 | -1.629216 | 0.031030 | 1.620191 | 4000 | 3258.018811 | 3461.665919 | 1.001731 | |
| (13,) | kernel_02 | 0.085475 | 1.011775 | -1.567616 | 0.079958 | 1.806172 | 4000 | 3390.260886 | 3494.992028 | 1.000858 | |
| (14,) | kernel_02 | 0.065382 | 0.989038 | -1.545948 | 0.071293 | 1.682244 | 4000 | 3483.577938 | 3300.564350 | 0.999452 | |
| (15,) | kernel_02 | 0.083964 | 0.998953 | -1.534829 | 0.072235 | 1.717191 | 4000 | 2886.588212 | 3009.055486 | 0.999795 | |
| (16,) | kernel_02 | 0.020062 | 0.992169 | -1.600778 | 0.002476 | 1.650164 | 4000 | 3188.162443 | 3493.687826 | 0.999671 | |
| (17,) | kernel_02 | 0.061893 | 0.987636 | -1.578367 | 0.059938 | 1.678118 | 4000 | 3500.872930 | 3774.369502 | 1.000692 | |
| (18,) | kernel_02 | 0.101397 | 1.015818 | -1.580298 | 0.103325 | 1.737488 | 4000 | 3362.259617 | 3973.672341 | 1.000933 | |
| (19,) | kernel_02 | -0.409298 | 0.993877 | -2.028548 | -0.396448 | 1.196150 | 4000 | 1864.669623 | 3414.244414 | 1.003948 | |
| (20,) | kernel_02 | 0.021687 | 0.991052 | -1.607439 | 0.016225 | 1.652792 | 4000 | 3412.315951 | 3495.904836 | 0.999883 | |
| (21,) | kernel_02 | -0.021332 | 0.974231 | -1.618732 | -0.022891 | 1.587855 | 4000 | 3247.459893 | 3388.044071 | 1.000909 | |
| (22,) | kernel_02 | -0.145468 | 0.993787 | -1.783674 | -0.136202 | 1.462505 | 4000 | 2960.064175 | 3716.002313 | 1.001537 | |
| (23,) | kernel_02 | 0.019553 | 1.003393 | -1.599527 | 0.011594 | 1.674545 | 4000 | 3369.969354 | 3810.491327 | 1.000334 | |
| (24,) | kernel_02 | 0.139218 | 1.002922 | -1.517436 | 0.141735 | 1.790566 | 4000 | 3434.375932 | 3703.512824 | 0.999970 | |
| (25,) | kernel_02 | 0.021509 | 1.008070 | -1.650407 | 0.040934 | 1.683132 | 4000 | 3217.514499 | 3639.108952 | 1.000412 | |
| (26,) | kernel_02 | 0.078028 | 0.985659 | -1.542917 | 0.090441 | 1.700466 | 4000 | 3420.850759 | 3840.535596 | 0.999952 | |
| (27,) | kernel_02 | 0.051379 | 1.002433 | -1.634726 | 0.076623 | 1.676202 | 4000 | 3532.436647 | 3304.433850 | 1.000266 | |
| (28,) | kernel_02 | 0.074784 | 1.002733 | -1.603812 | 0.068848 | 1.701423 | 4000 | 3145.326895 | 3156.395323 | 1.000968 | |
| (29,) | kernel_02 | 0.200842 | 1.001843 | -1.429474 | 0.201164 | 1.843652 | 4000 | 2677.785319 | 3615.137987 | 1.000299 | |
| (30,) | kernel_02 | -0.129754 | 0.995484 | -1.730766 | -0.153370 | 1.563187 | 4000 | 3082.741793 | 3800.786186 | 1.001786 | |
| (31,) | kernel_02 | -0.093704 | 1.000903 | -1.720932 | -0.102037 | 1.581529 | 4000 | 3319.086242 | 3664.065457 | 1.000056 | |
| (32,) | kernel_02 | 0.062308 | 0.987723 | -1.552611 | 0.068107 | 1.698465 | 4000 | 3175.188307 | 3581.334684 | 0.999661 | |
| (33,) | kernel_02 | -0.086987 | 0.998064 | -1.705815 | -0.108131 | 1.560569 | 4000 | 3042.619591 | 3728.003983 | 1.000619 | |
| (34,) | kernel_02 | 0.035038 | 0.999820 | -1.610464 | 0.015525 | 1.652445 | 4000 | 3243.582598 | 3529.843222 | 1.000460 | |
| (35,) | kernel_02 | -0.161511 | 0.981592 | -1.812029 | -0.167667 | 1.433410 | 4000 | 3328.288214 | 3713.067457 | 1.001138 | |
| (36,) | kernel_02 | 0.057044 | 0.989867 | -1.550283 | 0.050247 | 1.622215 | 4000 | 3319.842979 | 3853.787938 | 0.999746 | |
| (37,) | kernel_02 | 0.089711 | 0.993911 | -1.567816 | 0.094480 | 1.690042 | 4000 | 3684.572040 | 3764.117878 | 1.000552 | |
| (38,) | kernel_02 | -0.101033 | 0.983928 | -1.725200 | -0.087279 | 1.551378 | 4000 | 3118.720846 | 3168.181417 | 1.000423 | |
| (39,) | kernel_02 | -0.240801 | 0.984874 | -1.855641 | -0.244579 | 1.395711 | 4000 | 2630.958506 | 3627.274554 | 0.999900 | |
| (40,) | kernel_02 | -0.152367 | 1.001512 | -1.752209 | -0.177241 | 1.462355 | 4000 | 3226.324696 | 3664.848533 | 1.000568 | |
| (41,) | kernel_02 | -0.166027 | 0.977543 | -1.761164 | -0.178427 | 1.437798 | 4000 | 2851.808542 | 3714.860008 | 1.000768 | |
| (42,) | kernel_02 | 0.003221 | 1.001013 | -1.657148 | 0.001118 | 1.597729 | 4000 | 3355.544983 | 3442.079222 | 0.999666 | |
| (43,) | kernel_02 | -0.032537 | 1.017155 | -1.704087 | -0.023640 | 1.625575 | 4000 | 3317.676506 | 3442.898932 | 1.000473 | |
| (44,) | kernel_02 | -0.043390 | 0.991569 | -1.659987 | -0.049425 | 1.595721 | 4000 | 3492.736744 | 3887.032527 | 0.999424 | |
| (45,) | kernel_02 | -0.149088 | 0.994964 | -1.763726 | -0.145288 | 1.541716 | 4000 | 2783.741794 | 3457.732355 | 1.001290 | |
| (46,) | kernel_02 | -0.070280 | 0.991442 | -1.680281 | -0.067694 | 1.569601 | 4000 | 3249.080499 | 3642.869324 | 0.999990 | |
| (47,) | kernel_02 | -0.040485 | 1.011548 | -1.662248 | -0.035718 | 1.657670 | 4000 | 3507.634937 | 3850.195077 | 1.000455 | |
| (48,) | kernel_02 | -0.114785 | 0.995690 | -1.738748 | -0.108378 | 1.541380 | 4000 | 3195.439066 | 3771.031957 | 1.000378 | |
| $\tau_{ri(district)}^2$ | () | kernel_03 | 0.022282 | 0.049855 | 0.001709 | 0.008178 | 0.089705 | 4000 | 67.388287 | 160.065913 | 1.051167 |
Plots#
samples = results.get_posterior_samples()

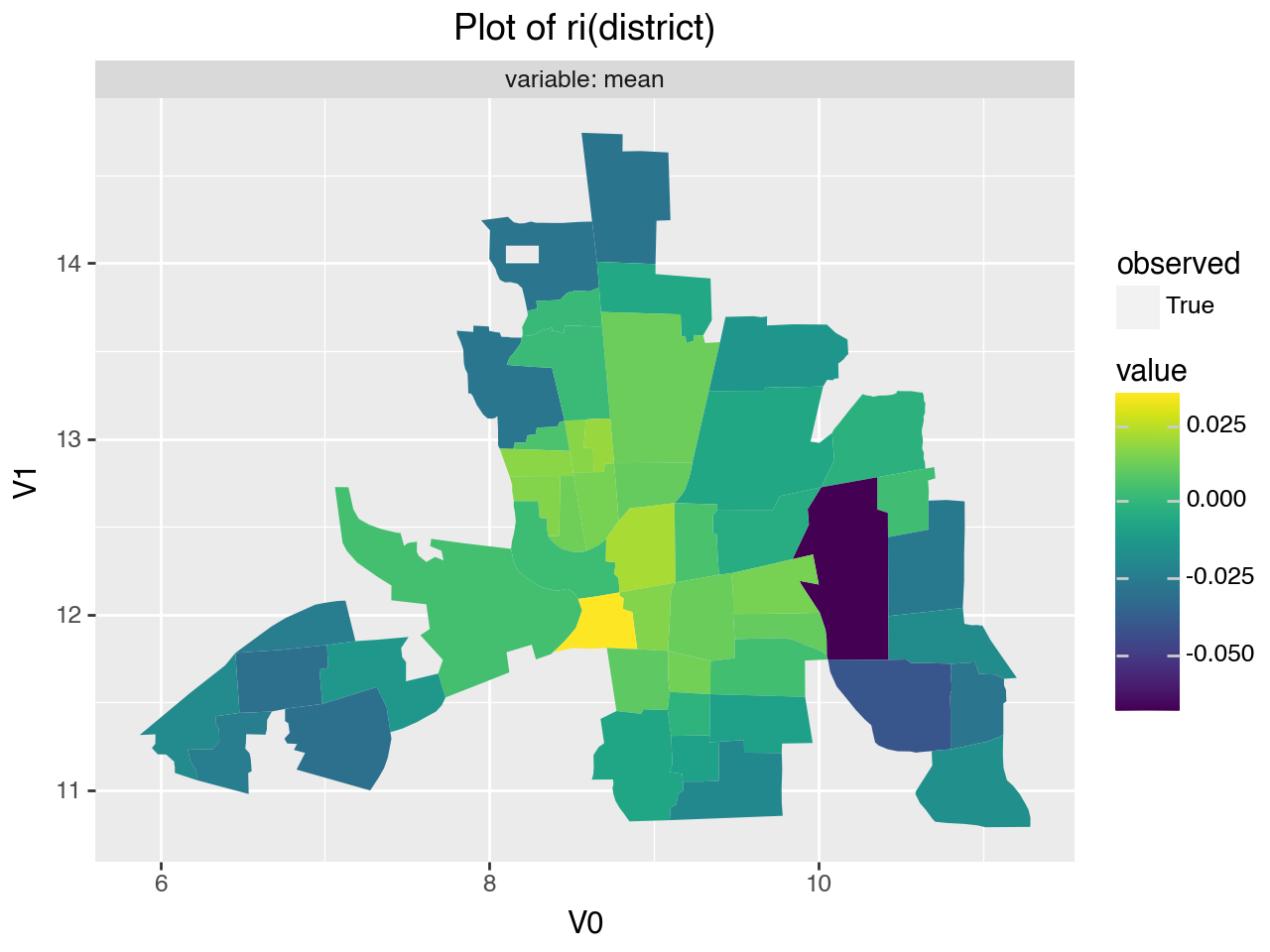

gam.plot_regions(model.vars["ri(district)"], samples, polys=polys)

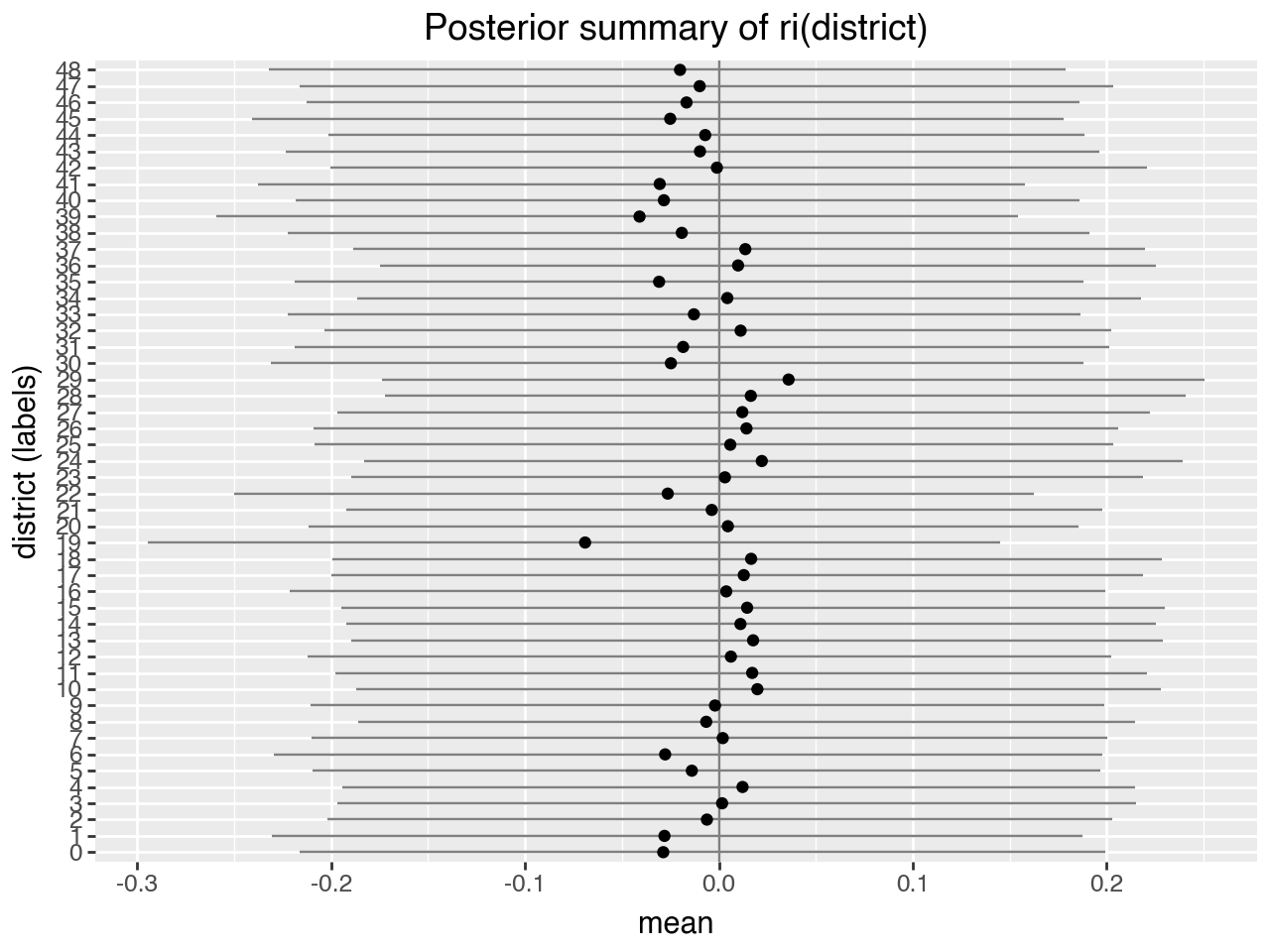

gam.plot_forest(model.vars["ri(district)"], samples)

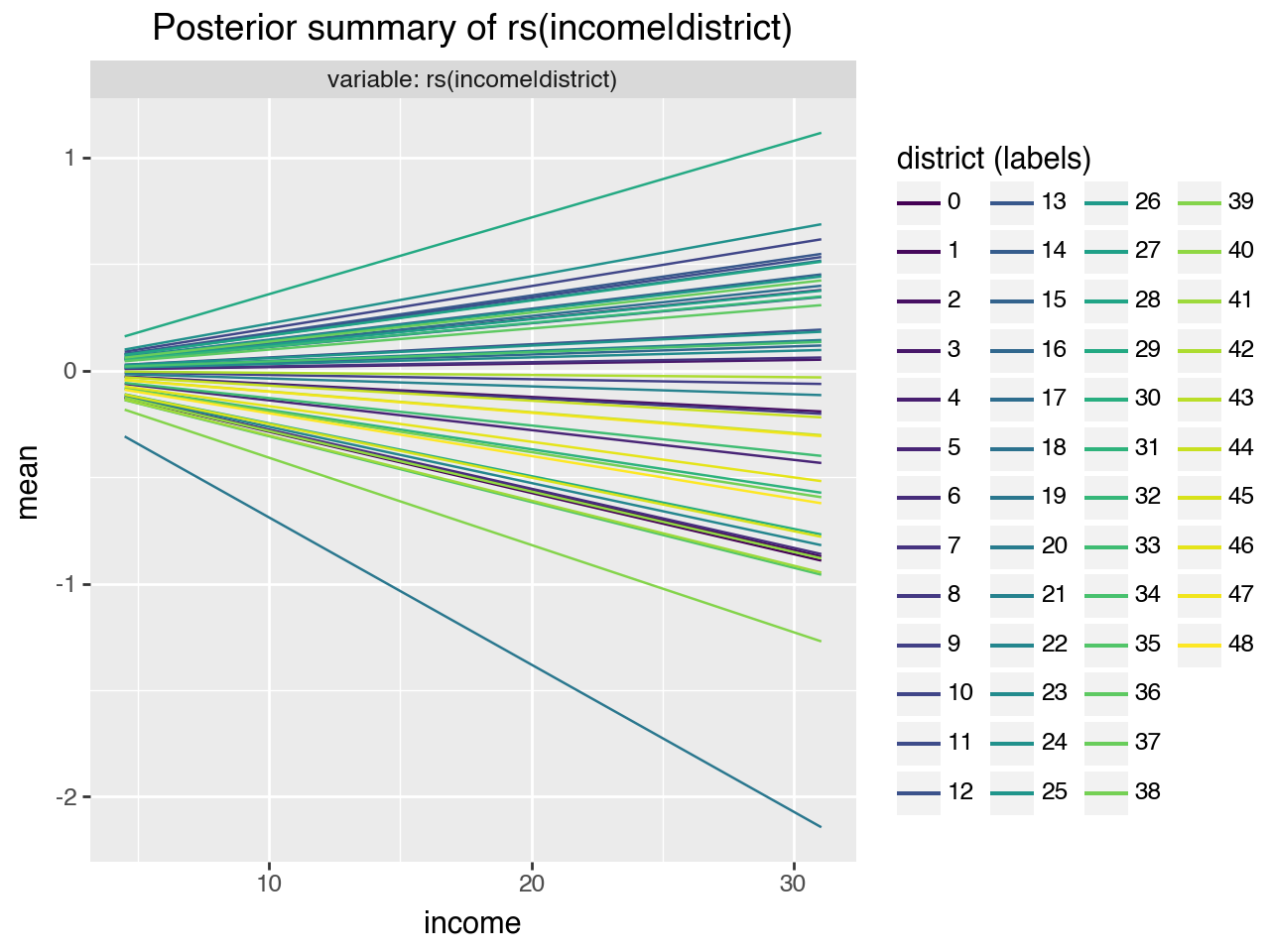

gam.plot_1d_smooth_clustered(
clustered_term=model.vars["rs(income|district)"],
samples=samples,
ngrid=10,
)
