TF: Full Tensor Product#
Setup and Imports#
import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import matplotlib.pyplot as plt
import numpy as np
import plotnine as p9
import tensorflow_probability.substrates.jax.distributions as tfd
import liesel_gam as gam
import jax
jax.config.update("jax_enable_x64", True)
df = gam.demo_data_ta(n=600, noise_sd=0.25, seed=42)
df_grid = gam.demo_data_ta(n=5000, grid=True)
plt.figure(figsize=(6, 5))
plt.scatter(df["x"], df["y"], c=df["z"])
plt.xlabel("x")
plt.ylabel("y")
plt.title("2D Color Plot")
plt.colorbar(label="eta")
plt.tight_layout()
plt.show()
plt.figure(figsize=(6, 5))
plt.scatter(df_grid["x"], df_grid["y"], c=df_grid["eta"])
plt.xlabel("x")
plt.ylabel("y")
plt.title("2D Color Plot")
plt.colorbar(label="eta")
plt.tight_layout()
plt.show()
Model Definition#
Setup response model#
loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)
z = lsl.Var.new_obs(
value=df.z.to_numpy(),
distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
name="z",
)
tb = gam.TermBuilder.from_df(df)
psx = tb.ps("x", k=12)
psy = tb.ps("y", k=12)
loc += tb.tf(psx, psy)

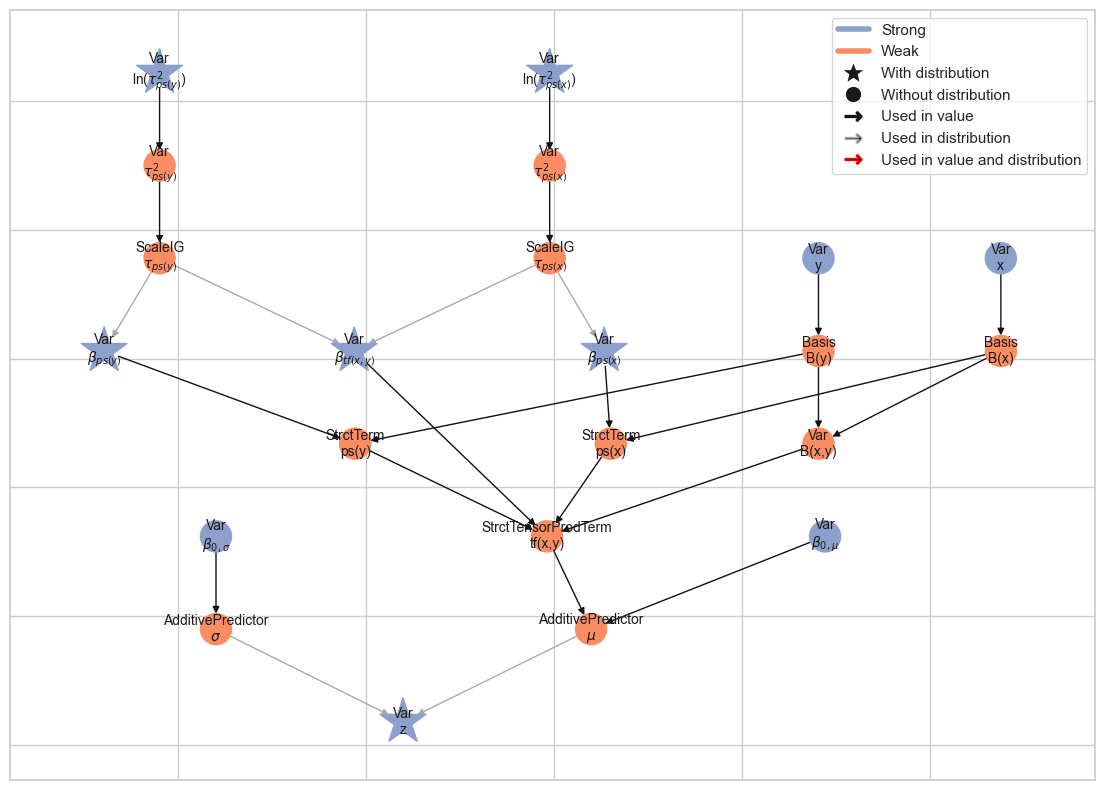

Build and plot model#
model = lsl.Model([z], to_float32=False)
model.plot_vars()
Run MCMC#
eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)
eb.add_adaptation(3000) # adaptation instead of burnin, because scales use HMC kernel
# eb.add_burnin(5000) # adaptation instead of burnin, because scales use HMC kernel
eb.add_posterior(11_000, thinning=10)
engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()
liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{tf(x,y)}$', 'ln($\\tau_{ps(y)}^2$)', 'ln($\\tau_{ps(x)}^2$)', '$\\beta_{ps(y)}$', '$\\beta_{ps(x)}$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 300 transitions, 25 jitted together
100%|████████████████████████████████████████| 12/12 [00:08<00:00, 1.48chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 26, 17, 24, 18 / 300 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 18, 27, 13, 17 / 300 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 25 transitions, 25 jitted together
100%|█████████████████████████████████████████| 1/1 [00:00<00:00, 611.68chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 4, 4, 4, 2 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 5, 4, 5, 5 / 25 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 50 transitions, 25 jitted together
100%|████████████████████████████████████████| 2/2 [00:00<00:00, 1006.55chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 5, 4, 5, 7 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 4, 5, 5, 6 / 50 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 100 transitions, 25 jitted together
100%|████████████████████████████████████████| 4/4 [00:00<00:00, 1244.51chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 10, 9, 7, 13 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 9, 7, 7, 8 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 200 transitions, 25 jitted together
100%|█████████████████████████████████████████| 8/8 [00:00<00:00, 121.60chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 17, 15, 14, 24 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 20, 16, 20, 12 / 200 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 400 transitions, 25 jitted together
100%|████████████████████████████████████████| 16/16 [00:00<00:00, 28.33chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 33, 28, 19, 29 / 400 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 28, 20, 29, 29 / 400 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 1325 transitions, 25 jitted together
100%|████████████████████████████████████████| 53/53 [00:02<00:00, 18.84chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 40, 45, 45, 50 / 1325 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 49, 50, 50, 47 / 1325 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 600 transitions, 25 jitted together
100%|████████████████████████████████████████| 24/24 [00:01<00:00, 21.02chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 31, 23, 31, 27 / 600 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 29, 29, 36, 39 / 600 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 11000 transitions, 25 jitted together
100%|██████████████████████████████████████| 440/440 [00:28<00:00, 15.24chunk/s]
liesel.goose.engine - INFO - Finished epoch
MCMC summary#
summary = gs.Summary(results)
diagnostics = (
summary.to_dataframe()
.reset_index()
.loc[:, ["variable", "rhat", "ess_bulk", "ess_tail"]]
.groupby("variable", as_index=False)
.agg(
ess_bulk_min=("ess_bulk", "min"),
ess_bulk_median=("ess_bulk", "median"),
ess_tail_min=("ess_tail", "min"),
ess_tail_median=("ess_tail", "median"),
rhat_max=("rhat", "max"),
rhat_median=("rhat", "median"),
)
)
diagnostics
| variable | ess_bulk_min | ess_bulk_median | ess_tail_min | ess_tail_median | rhat_max | rhat_median | |
|---|---|---|---|---|---|---|---|
| 0 | $\beta_{0,\mu}$ | 3667.153507 | 3667.153507 | 4143.494652 | 4143.494652 | 1.000081 | 1.000081 |
| 1 | $\beta_{0,\sigma}$ | 3237.887897 | 3237.887897 | 4234.954461 | 4234.954461 | 1.000708 | 1.000708 |
| 2 | $\beta_{ps(x)}$ | 2654.456086 | 2950.001567 | 3329.684058 | 3773.720469 | 1.003448 | 1.002228 |
| 3 | $\beta_{ps(y)}$ | 1715.689416 | 3458.595736 | 2951.163691 | 3706.319678 | 1.001731 | 1.000516 |
| 4 | $\beta_{tf(x,y)}$ | 562.751795 | 1610.338148 | 288.872165 | 2004.276465 | 1.007987 | 1.002640 |
| 5 | ln($\tau_{ps(x)}^2$) | 357.905826 | 357.905826 | 1083.738474 | 1083.738474 | 1.009642 | 1.009642 |
| 6 | ln($\tau_{ps(y)}^2$) | 210.415649 | 210.415649 | 352.794218 | 352.794218 | 1.010037 | 1.010037 |
summary.error_df()
| count | sample_size | sample_size_total | relative | ||||
|---|---|---|---|---|---|---|---|
| kernel | error_code | error_msg | phase | ||||
| kernel_03 | 1 | divergent transition | warmup | 630 | 12000 | 12000 | 0.0525 |
| posterior | 0 | 4400 | 44000 | 0.0 | |||
| kernel_04 | 1 | divergent transition | warmup | 648 | 12000 | 12000 | 0.054 |
| posterior | 0 | 4400 | 44000 | 0.0 |

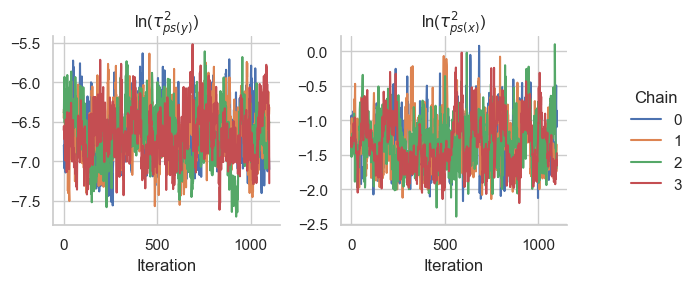

gs.plot_trace(results, [n for n in model.parameters if "tau" in n])
<seaborn.axisgrid.FacetGrid at 0x149885450>
Predictions#
samples = results.get_posterior_samples()
Plot#
gam.plot_2d_smooth(model.vars["tf(x,y)"], samples, ngrid=100)
Predict variables at new x values#
predictions = model.predict(
samples=samples,
predict=["tf(x,y)", "$\\mu$"],
newdata={"x": df_grid.x.to_numpy(), "y": df_grid.y.to_numpy()},
)
predictions_summary = (
gs.SamplesSummary(predictions, which=["mean", "quantiles"])
.to_dataframe()
.reset_index()
)
predictions_summary["x"] = np.tile(df_grid.x.to_numpy(), len(predictions))
predictions_summary["y"] = np.tile(df_grid.y.to_numpy(), len(predictions))
predictions_summary.head()
| variable | var_fqn | var_index | sample_size | mean | q_0.05 | q_0.5 | q_0.95 | x | y | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | $\mu$ | $\mu$[0] | (0,) | 4400 | 0.183780 | -0.960436 | 0.194830 | 1.308365 | 0.000000 | 0.0 |
| 1 | $\mu$ | $\mu$[1] | (1,) | 4400 | 0.577247 | -0.326586 | 0.575744 | 1.464964 | 0.014286 | 0.0 |
| 2 | $\mu$ | $\mu$[2] | (2,) | 4400 | 0.931156 | 0.203578 | 0.931666 | 1.651620 | 0.028571 | 0.0 |
| 3 | $\mu$ | $\mu$[3] | (3,) | 4400 | 1.230964 | 0.641704 | 1.226999 | 1.833733 | 0.042857 | 0.0 |
| 4 | $\mu$ | $\mu$[4] | (4,) | 4400 | 1.463612 | 0.973566 | 1.462210 | 1.967166 | 0.057143 | 0.0 |

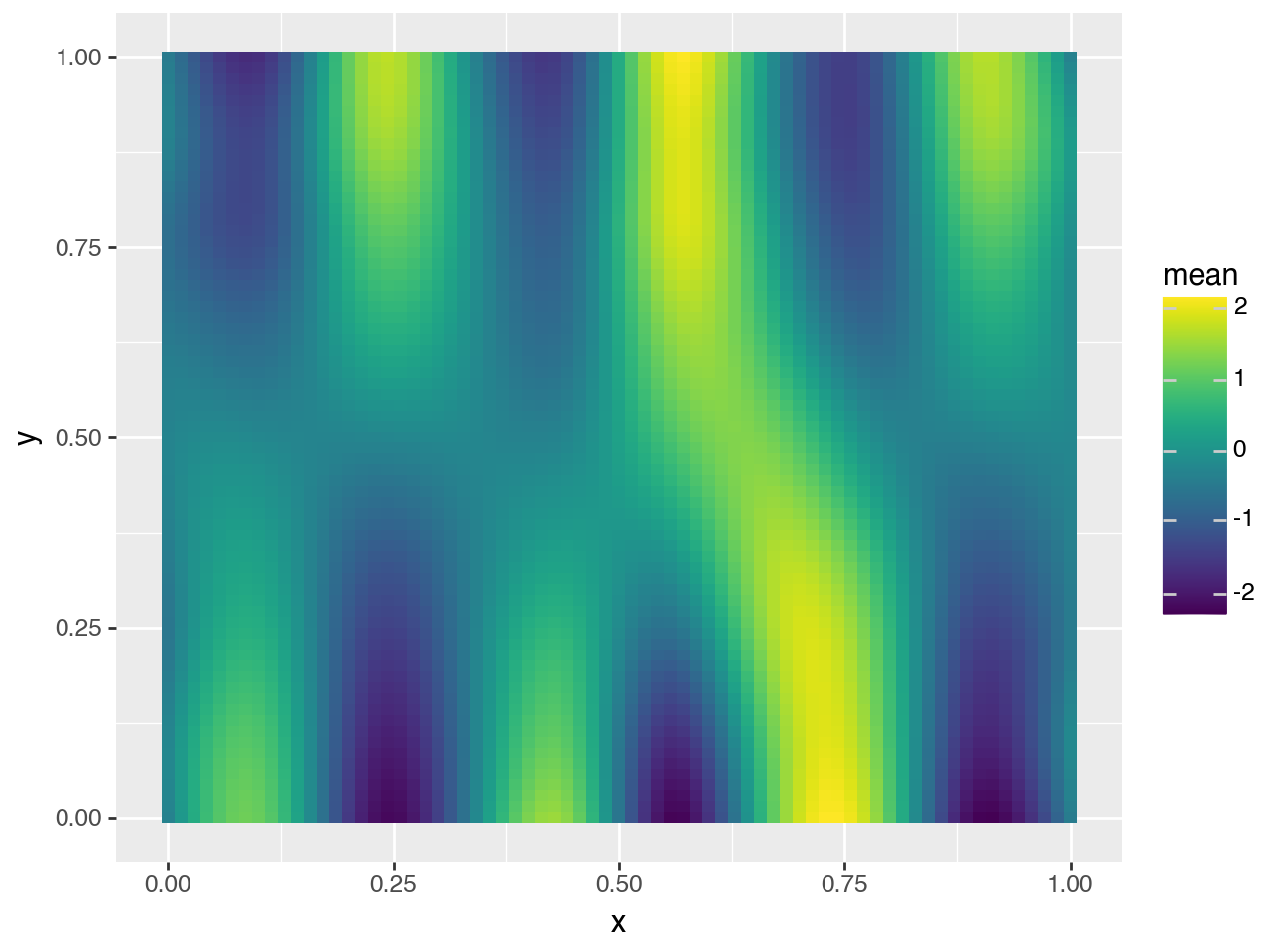

Plot predictions#
select = predictions_summary["variable"].isin(["tf(x,y)"])
(p9.ggplot(predictions_summary[select]) + p9.geom_tile(p9.aes("x", "y", fill="mean")))
select = predictions_summary["variable"].isin(["$\\mu$"])
(p9.ggplot(predictions_summary[select]) + p9.geom_tile(p9.aes("x", "y", fill="mean")))

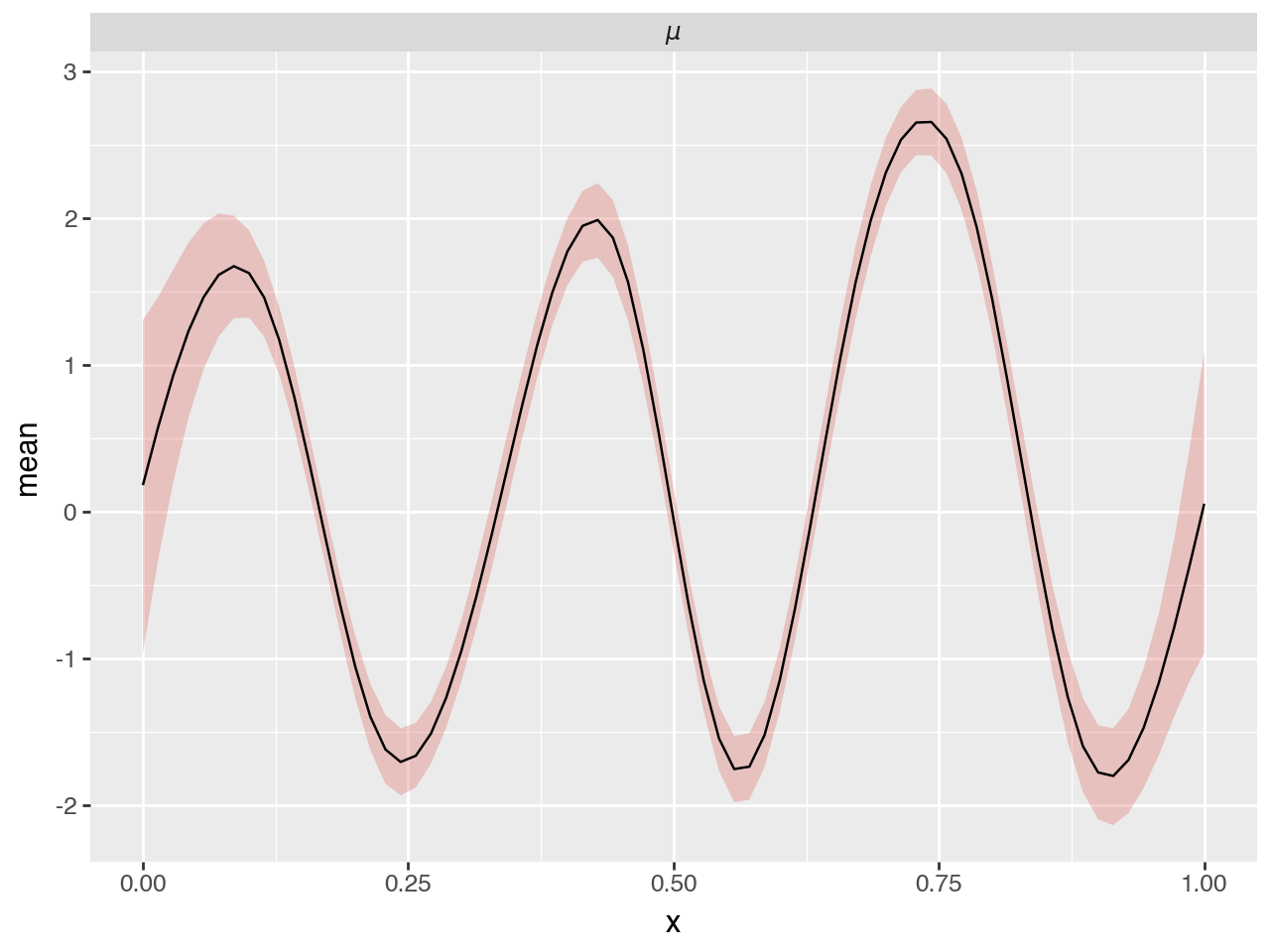

select = predictions_summary["variable"].isin(["$\\mu$"])
(
p9.ggplot(predictions_summary[select].query("y == 0.0"))
+ p9.geom_ribbon(
p9.aes("x", ymin="q_0.05", ymax="q_0.95", fill="variable"), alpha=0.3
)
+ p9.geom_line(p9.aes("x", "mean"))
+ p9.facet_wrap("~variable", scales="free_y", ncol=1)
+ p9.guides(fill="none")
)

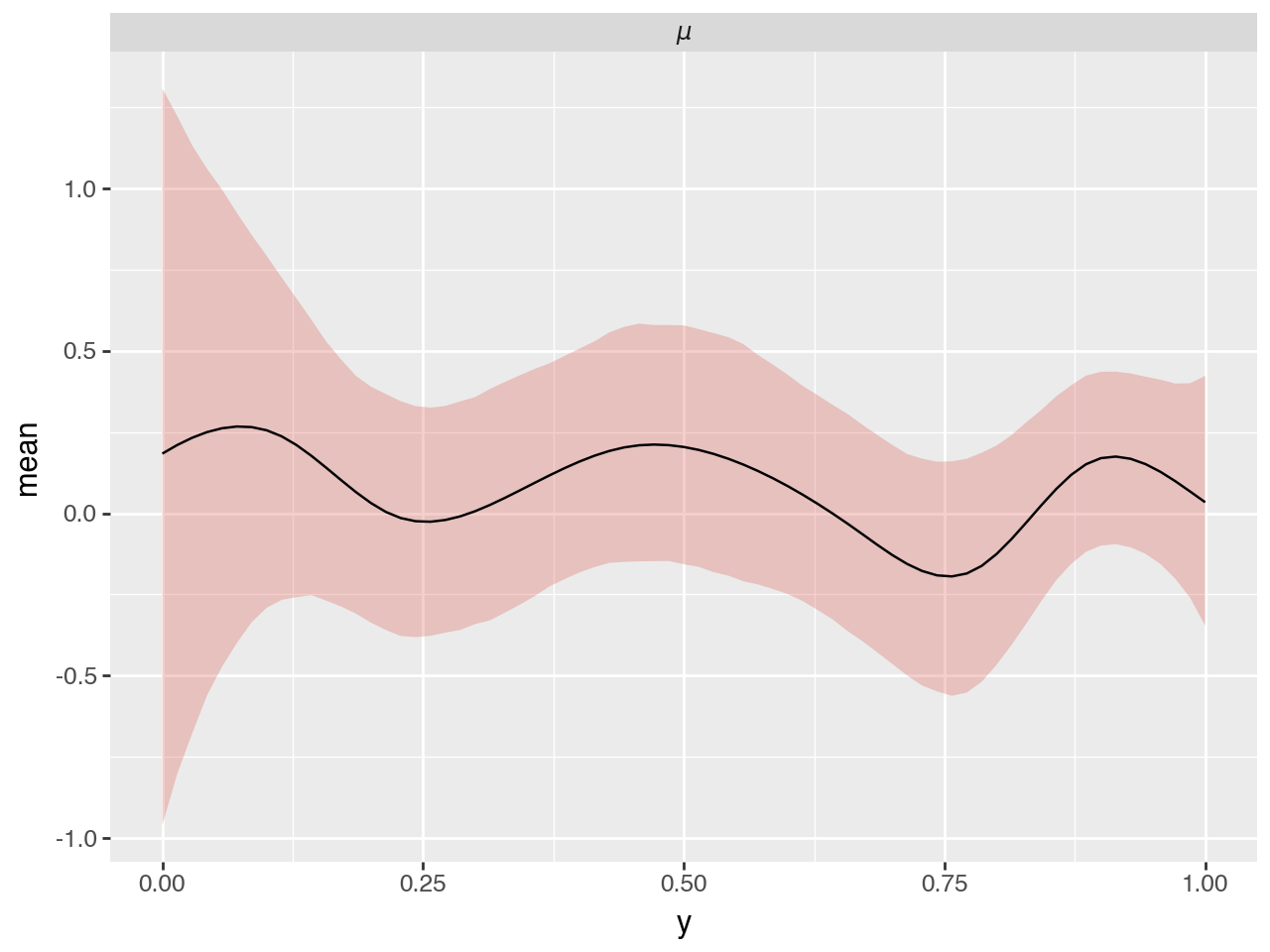

select = predictions_summary["variable"].isin(["$\\mu$"])
(
p9.ggplot(predictions_summary[select].query("x == 0.0"))
+ p9.geom_ribbon(
p9.aes("y", ymin="q_0.05", ymax="q_0.95", fill="variable"), alpha=0.3
)
+ p9.geom_line(p9.aes("y", "mean"))
+ p9.facet_wrap("~variable", scales="free_y", ncol=1)
+ p9.guides(fill="none")
)
