Ridge Regression

Setup and Imports

import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel_gam as gam

# import data from R
from ryp import r, to_py

r("library(mgcv)")
r("data(columb)")
r("data(columb.polys)")

columb = to_py("columb", format="pandas").reset_index()
polys = to_py("columb.polys", format="numpy")

Loading required package: nlme
This is mgcv 1.9-3. For overview type 'help("mgcv-package")'.

columb.head()

	index	area	home.value	income	crime	open.space	district	x	y
0	0	0.309441	80.467003	19.531	15.725980	2.850747	0	8.827218	14.369076
1	1	0.259329	44.567001	21.232	18.801754	5.296720	1	8.332658	14.031624
2	2	0.192468	26.350000	15.956	30.626781	4.534649	2	9.012265	13.819719
3	3	0.083841	33.200001	4.477	32.387760	0.394427	3	8.460801	13.716962
4	4	0.488888	23.225000	11.252	50.731510	0.405664	4	9.007982	13.296366

columb["home_value"] = columb["home.value"]

Model Definition

df = columb
tb = gam.TermBuilder.from_df(df)

loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)


y = lsl.Var.new_obs(
    value=jnp.asarray(df.crime),
    distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
    name="y",
)

loc += tb.slin("scale(area)*scale(income) + home_value")
loc += tb.slin("x")

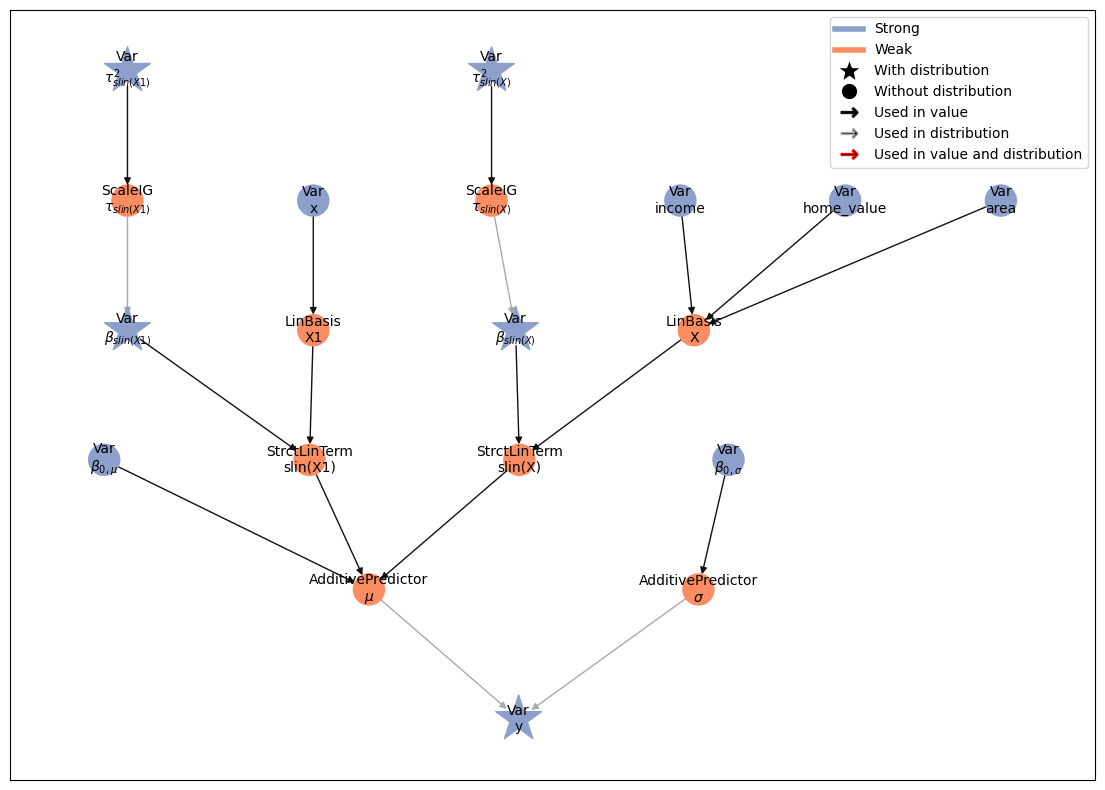

Build and plot model

model = lsl.Model([y])
model.plot_vars()

Run MCMC

eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)

eb.add_burnin(3000)
eb.add_posterior(10_000, thinning=10)
engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{slin(X1)}$', '$\\tau_{slin(X1)}^2$', '$\\beta_{slin(X)}$', '$\\tau_{slin(X)}^2$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: BURNIN, 3000 transitions, 1000 jitted together
100%|██████████████████████████████████████████| 3/3 [00:05<00:00,  1.94s/chunk]
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 10000 transitions, 1000 jitted together
100%|████████████████████████████████████████| 10/10 [00:01<00:00,  8.41chunk/s]
liesel.goose.engine - INFO - Finished epoch

MCMC summary

summary = gs.Summary(results)
summary

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
$\beta_{0,\mu}$	()	kernel_01	50.423874	5.551556	41.285841	50.548395	59.528074	4000	744.300102	1364.879959	1.005233
$\beta_{0,\sigma}$	()	kernel_00	2.568712	0.135054	2.341922	2.573146	2.786142	4000	762.876288	2102.167502	1.003906
$\beta_{slin(X)}$	(0,)	kernel_04	-0.747856	1.243803	-3.372592	-0.300267	0.512158	4000	1192.404522	2251.706487	1.003214
	(1,)	kernel_04	-2.408074	3.028234	-8.593204	-0.707601	0.222592	4000	526.360584	1451.542407	1.002918
	(2,)	kernel_04	-0.404911	0.128513	-0.611758	-0.408155	-0.191760	4000	736.870889	1501.586357	1.004544
	(3,)	kernel_04	0.352666	1.088577	-1.006980	0.098186	2.637049	4000	2141.832670	2199.561835	1.002726
$\beta_{slin(X1)}$	(0,)	kernel_02	0.011789	0.148353	-0.186421	0.006168	0.220925	4000	3153.910219	2807.517916	1.001177
$\tau_{slin(X)}^2$	()	kernel_05	4.572954	10.528326	0.022895	0.374988	21.814411	4000	463.782228	1585.615221	1.006425
$\tau_{slin(X1)}^2$	()	kernel_03	0.026659	0.140826	0.001746	0.007448	0.089177	4000	3585.686105	3392.821623	1.000141

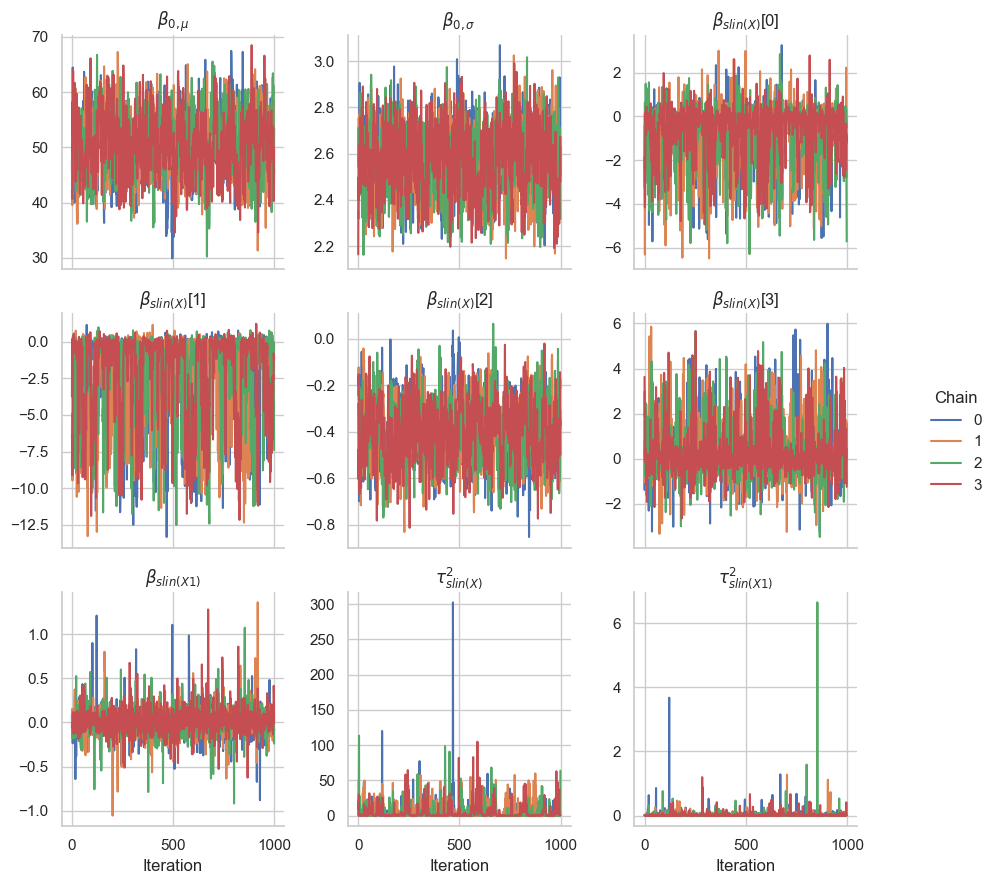

gs.plot_trace(results)

<seaborn.axisgrid.FacetGrid at 0x1320a7230>

samples = results.get_posterior_samples()

gam.summarise_lin(model.vars["slin(X)"], samples)

	x	sample_size	mean	var	sd	q_0.05	q_0.5	q_0.95	hdi_low	hdi_high
0	scale(area)	4000	-0.747856	1.547045	1.243803	-3.372592	-0.300267	0.512158	-2.927002	0.739477
1	scale(income)	4000	-2.408074	9.170200	3.028234	-8.593204	-0.707601	0.222592	-7.445577	0.507699
2	home_value	4000	-0.404911	0.016516	0.128513	-0.611758	-0.408155	-0.191760	-0.617899	-0.201955
3	scale(area):scale(income)	4000	0.352666	1.185000	1.088577	-1.006980	0.098186	2.637049	-1.092426	2.469852

gam.summarise_lin(model.vars["slin(X1)"], samples)

	x	sample_size	mean	var	sd	q_0.05	q_0.5	q_0.95	hdi_low	hdi_high
0	x	4000	0.011789	0.022009	0.148353	-0.186421	0.006168	0.220925	-0.19329	0.206631

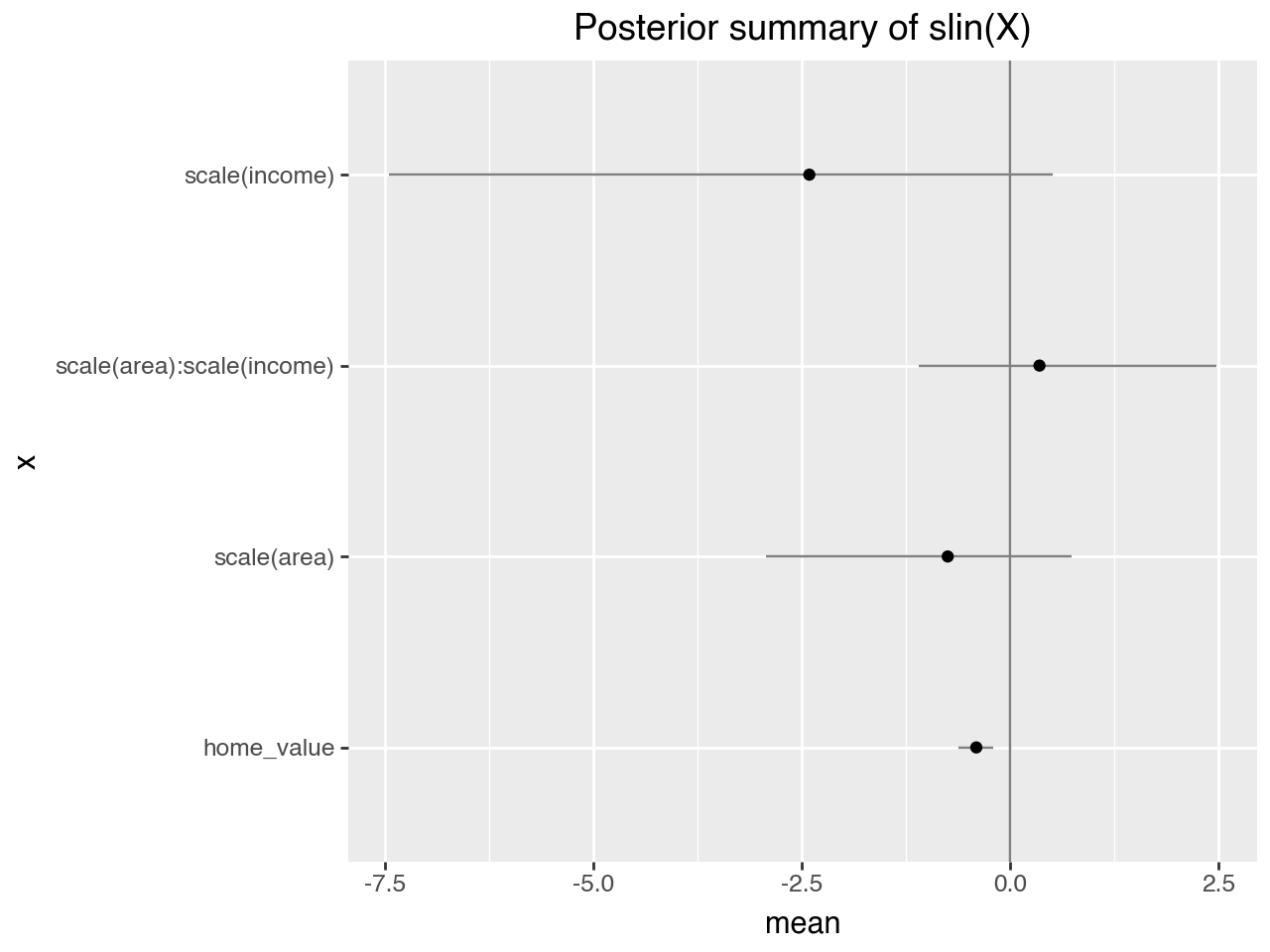

term = model.vars["slin(X)"]
gam.plot_forest(term, samples)

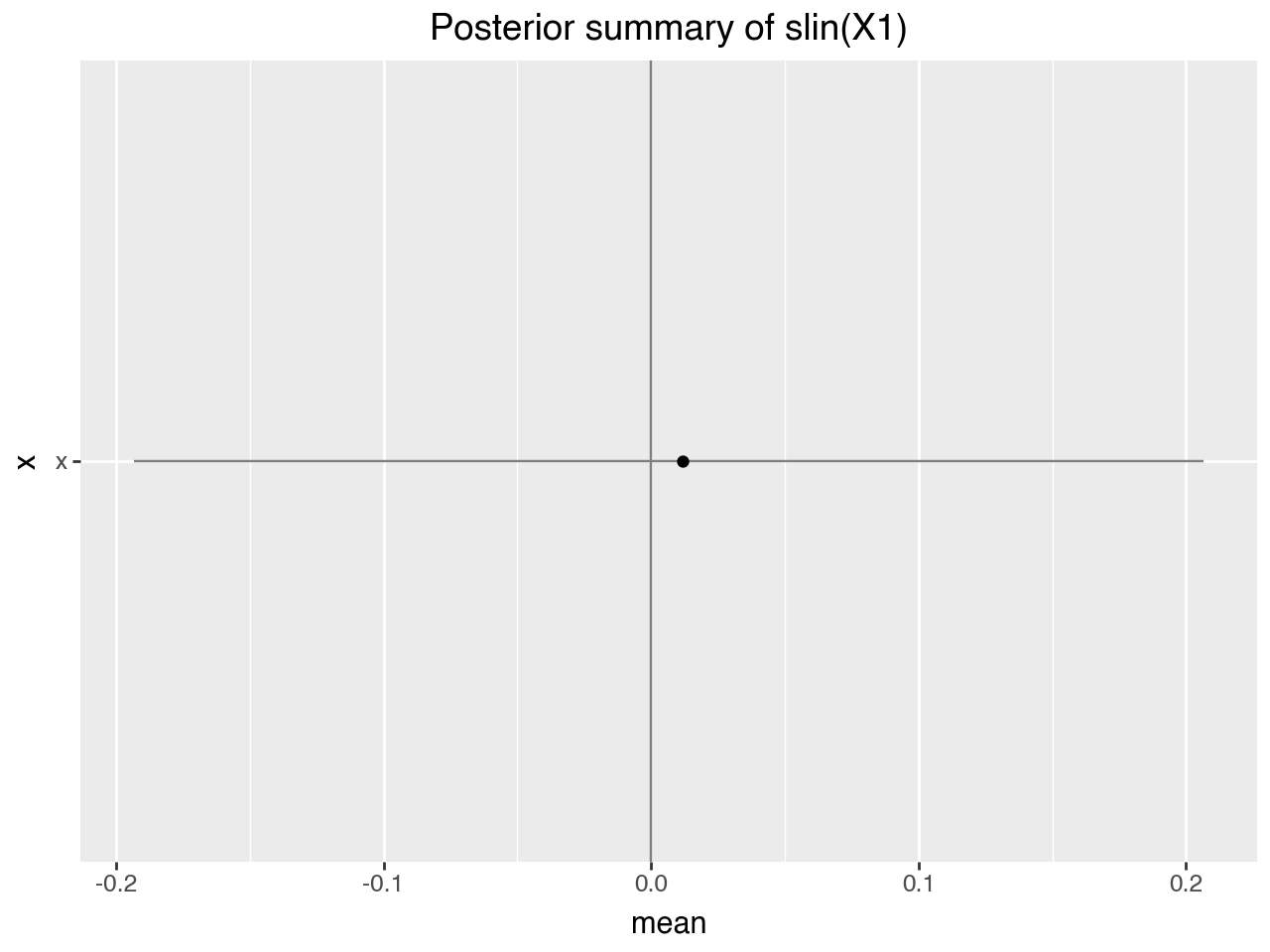

term = model.vars["slin(X1)"]
gam.plot_forest(term, samples)
