MRF: Markov Random Field

Setup and Imports

import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import numpy as np
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel_gam as gam

# import data from R
from ryp import r, to_py

r("library(mgcv)")
r("data(columb)")
r("data(columb.polys)")

columb = to_py("columb", format="pandas").reset_index()
polys = to_py("columb.polys", format="numpy")

gam.plot_polys(region="district", which=["crime"], df=columb, polys=polys)

Model Definition

# removing some observations here to simulate a dataset with unobserved clusters
i = np.arange(columb.shape[0])
i10 = i[:10]
i20 = i[11:20]
i30 = i[21:30]
irest = i[31:]
i = np.concatenate((i10, i20, i30, irest))
df = columb.iloc[i, :].reset_index()

# standardizing makes it easier for the model
df["crime"] = (df["crime"] - df["crime"].mean()) / df["crime"].std()

loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)

# initializing intercepts to sensible values
loc.intercept.value = df.crime.mean()
scale.intercept.value = jnp.log(df.crime.std())


y = lsl.Var.new_obs(
    value=df.crime.to_numpy(),
    distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
    name="y",
)

tb = gam.TermBuilder.from_df(df)


loc += tb.mrf(
    "district",
    k=40,  # using a low-rank MRF here, because we have only 1 observation per cluster.
    polys=polys,
    scale=gam.VarIGPrior(0.01, 0.01, 0.1),
    factor_scale=True,
)

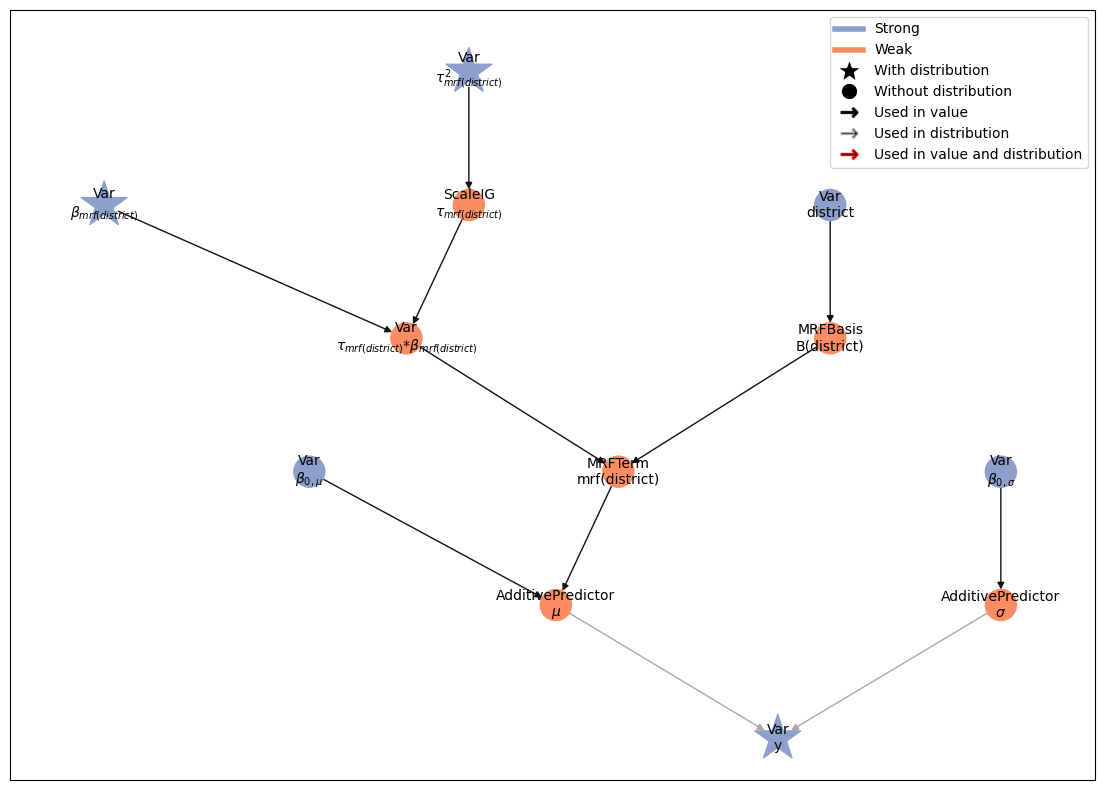

Build and plot model

model = lsl.Model([y])
model.plot_vars()

liesel.model.model - INFO - Converted dtype of Value(name="y_value").value
liesel.model.model - INFO - Converted dtype of Value(name="$\beta_{0,\mu}$_value").value

Run MCMC

eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)

eb.add_burnin(3000)
eb.add_posterior(10_000, thinning=10)

engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{mrf(district)}$', '$\\tau_{mrf(district)}^2$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: BURNIN, 3000 transitions, 1000 jitted together
100%|██████████████████████████████████████████| 3/3 [00:02<00:00,  1.14chunk/s]
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 10000 transitions, 1000 jitted together
100%|████████████████████████████████████████| 10/10 [00:01<00:00,  8.03chunk/s]
liesel.goose.engine - INFO - Finished epoch

MCMC summary

summary = gs.Summary(results)
summary

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
$\beta_{0,\mu}$	()	kernel_01	-0.003580	0.104040	-0.172420	-0.003226	0.168574	4000	4128.141289	3861.134067	1.000269
$\beta_{0,\sigma}$	()	kernel_00	-0.382368	0.179775	-0.673807	-0.387672	-0.078226	4000	759.769426	1653.443321	1.001388
$\beta_{mrf(district)}$	(0,)	kernel_02	0.734054	0.930112	-0.850236	0.757395	2.223578	4000	2224.144217	3795.382722	1.000776
	(1,)	kernel_02	0.183005	0.898392	-1.295767	0.181252	1.641307	4000	3331.498057	3738.339084	1.000012
	(2,)	kernel_02	-0.319014	0.896056	-1.772981	-0.340988	1.181685	4000	3096.563629	3522.443074	1.000185
	(3,)	kernel_02	-0.120443	0.874687	-1.554043	-0.111225	1.336551	4000	3651.294647	3597.077531	1.000916
	(4,)	kernel_02	0.144608	0.849683	-1.228167	0.143426	1.506603	4000	3541.345596	3714.847753	1.000765
	(5,)	kernel_02	-0.048042	0.845411	-1.402315	-0.059043	1.321099	4000	3350.572873	3293.832139	0.999785
	(6,)	kernel_02	0.890617	0.906810	-0.640480	0.904657	2.333886	4000	2218.303185	3025.331910	1.000710
	(7,)	kernel_02	-0.349899	0.863267	-1.741079	-0.362708	1.079250	4000	3265.416856	3104.258288	1.000485
	(8,)	kernel_02	0.012799	0.827630	-1.373064	0.015367	1.340184	4000	3497.628681	3418.055080	0.999645
	(9,)	kernel_02	0.290853	0.850292	-1.128265	0.314719	1.663848	4000	3165.981568	3879.076364	1.000071
	(10,)	kernel_02	-0.433604	0.916335	-1.950916	-0.419934	1.078530	4000	3195.804415	3595.036898	1.000954
	(11,)	kernel_02	0.324850	0.834942	-1.081650	0.336686	1.670527	4000	3386.210634	3363.387032	1.000490
	(12,)	kernel_02	-1.306409	0.919171	-2.768893	-1.320707	0.269126	4000	1659.370184	2494.403658	1.000072
	(13,)	kernel_02	0.151432	0.834099	-1.219404	0.155445	1.506486	4000	3441.744746	3777.351803	1.000898
	(14,)	kernel_02	-0.139186	0.850732	-1.538324	-0.148588	1.273791	4000	3425.541042	3973.719668	1.001252
	(15,)	kernel_02	0.367454	0.836638	-1.012700	0.379260	1.720965	4000	3057.460590	3521.844530	1.000354
	(16,)	kernel_02	-0.230954	0.825652	-1.554380	-0.240329	1.128883	4000	3434.843555	3559.509891	1.000024
	(17,)	kernel_02	0.220780	0.811259	-1.123885	0.224643	1.573010	4000	3269.807101	3424.065108	0.999672
	(18,)	kernel_02	-0.330824	0.817928	-1.647253	-0.354557	1.011196	4000	3630.937224	3853.568860	1.000377
	(19,)	kernel_02	0.539861	0.848227	-0.881640	0.558531	1.895959	4000	2889.461567	2968.601754	1.000823
	(20,)	kernel_02	-0.396995	0.812252	-1.682499	-0.437580	0.979201	4000	3424.528463	3265.868819	0.999690
	(21,)	kernel_02	-0.355798	0.815720	-1.663999	-0.369793	1.047433	4000	2869.333926	3158.055884	1.000677
	(22,)	kernel_02	-0.112538	0.819784	-1.451739	-0.116155	1.247474	4000	3529.129979	3762.472460	1.000039
	(23,)	kernel_02	-0.573999	0.796707	-1.840591	-0.600600	0.766930	4000	3029.835200	3822.408057	1.001840
	(24,)	kernel_02	-0.452299	0.791887	-1.775378	-0.450625	0.873158	4000	3464.533027	3713.061222	1.000142
	(25,)	kernel_02	0.374664	0.814586	-0.958073	0.380786	1.677336	4000	3347.453033	3512.795151	1.000279
	(26,)	kernel_02	-0.401156	0.759131	-1.618902	-0.418309	0.844527	4000	3340.090736	3330.505596	0.999955
	(27,)	kernel_02	0.644882	0.760511	-0.639059	0.672120	1.858458	4000	3199.615685	3526.843969	0.999695
	(28,)	kernel_02	0.230367	0.859052	-1.198759	0.252664	1.600876	4000	3421.379739	3516.977664	1.001228
	(29,)	kernel_02	-0.158961	0.798545	-1.459488	-0.167566	1.172190	4000	2982.818369	3641.169531	1.001088
	(30,)	kernel_02	-0.756595	0.703527	-1.866371	-0.786238	0.417410	4000	2863.970671	2773.858380	1.000485
	(31,)	kernel_02	-1.012188	0.687997	-2.131813	-1.018673	0.132353	4000	2425.108041	2808.495116	0.999825
	(32,)	kernel_02	0.751591	0.665425	-0.370213	0.781156	1.782203	4000	3235.040705	3112.609190	1.000178
	(33,)	kernel_02	-1.241534	0.719319	-2.386984	-1.252372	-0.060085	4000	1971.411656	2330.655004	1.001608
	(34,)	kernel_02	0.679548	0.594236	-0.288307	0.673541	1.627562	4000	3487.900814	3217.553146	1.000636
	(35,)	kernel_02	1.364089	0.533356	0.519688	1.359027	2.246238	4000	3296.216997	2532.424887	1.002792
	(36,)	kernel_02	-1.444965	0.516227	-2.334677	-1.421517	-0.660619	4000	2957.540390	2859.159832	1.000935
	(37,)	kernel_02	0.380117	0.380897	-0.214342	0.369101	1.005009	4000	3871.378499	2369.016009	1.001500
	(38,)	kernel_02	-0.634658	0.320186	-1.233288	-0.588642	-0.205414	4000	1721.129550	1363.259482	1.001619
$\tau_{mrf(district)}^2$	()	kernel_03	3.475489	1.868635	0.896338	3.234976	6.973548	4000	528.736199	456.614325	1.001866

Plots

samples = results.get_posterior_samples()

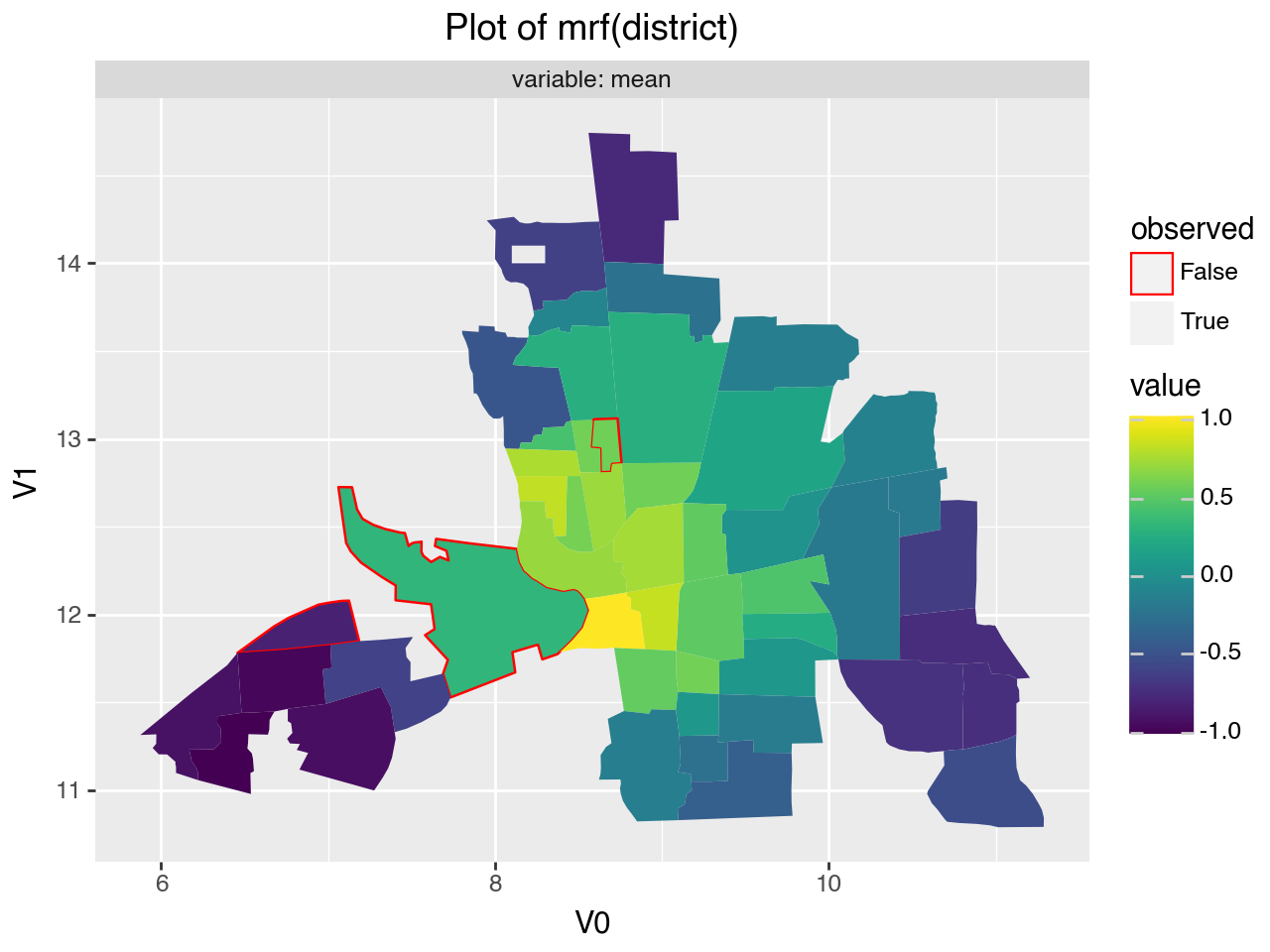

gam.plot_regions(term=loc.terms["mrf(district)"], samples=samples, polys=polys)

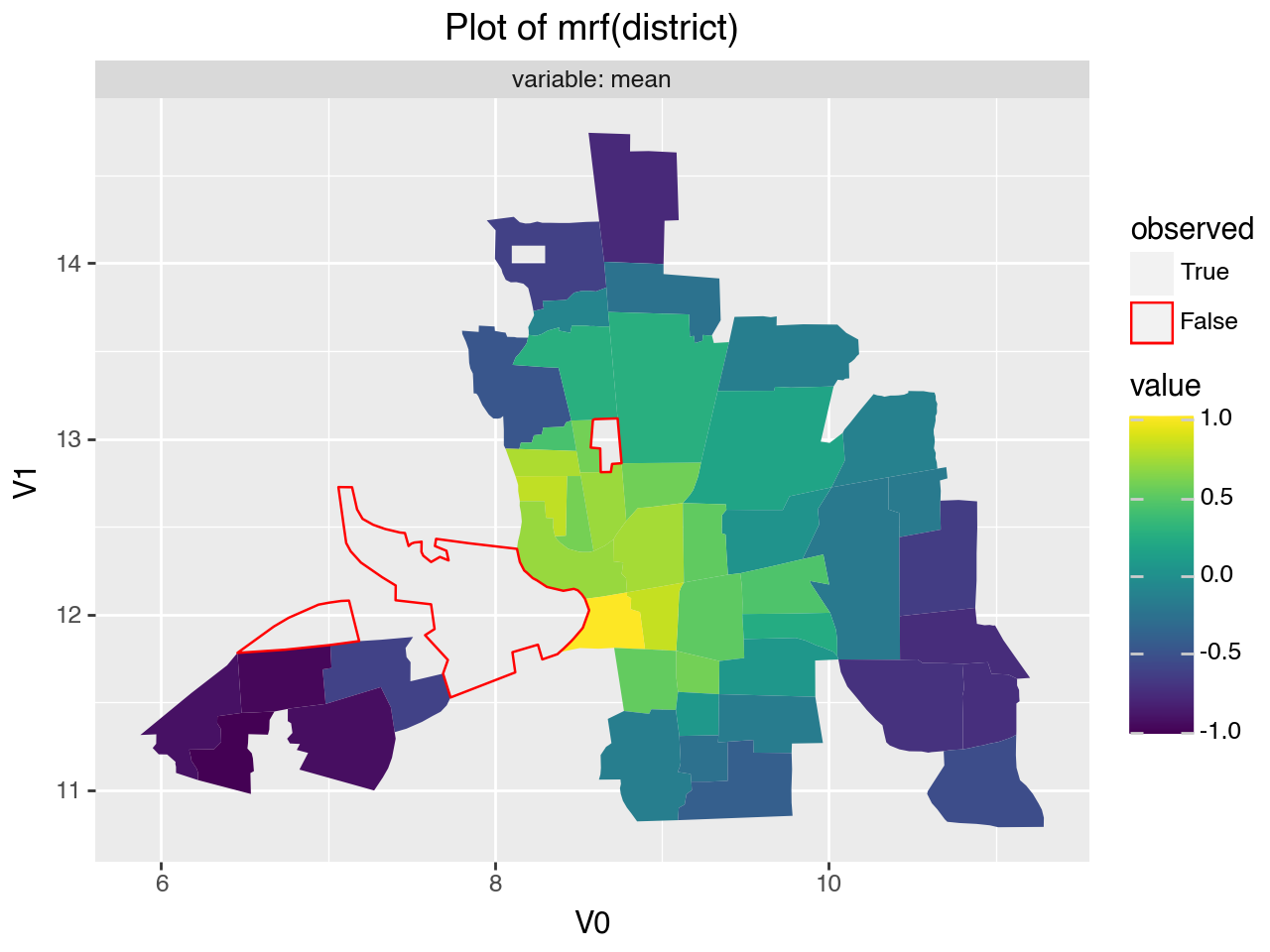

gam.plot_regions(
    term=loc.terms["mrf(district)"],
    samples=samples,
    polys=polys,
    show_unobserved=False,
    unobserved_color="red",
    observed_color="none",
)

import plotnine as p9

(

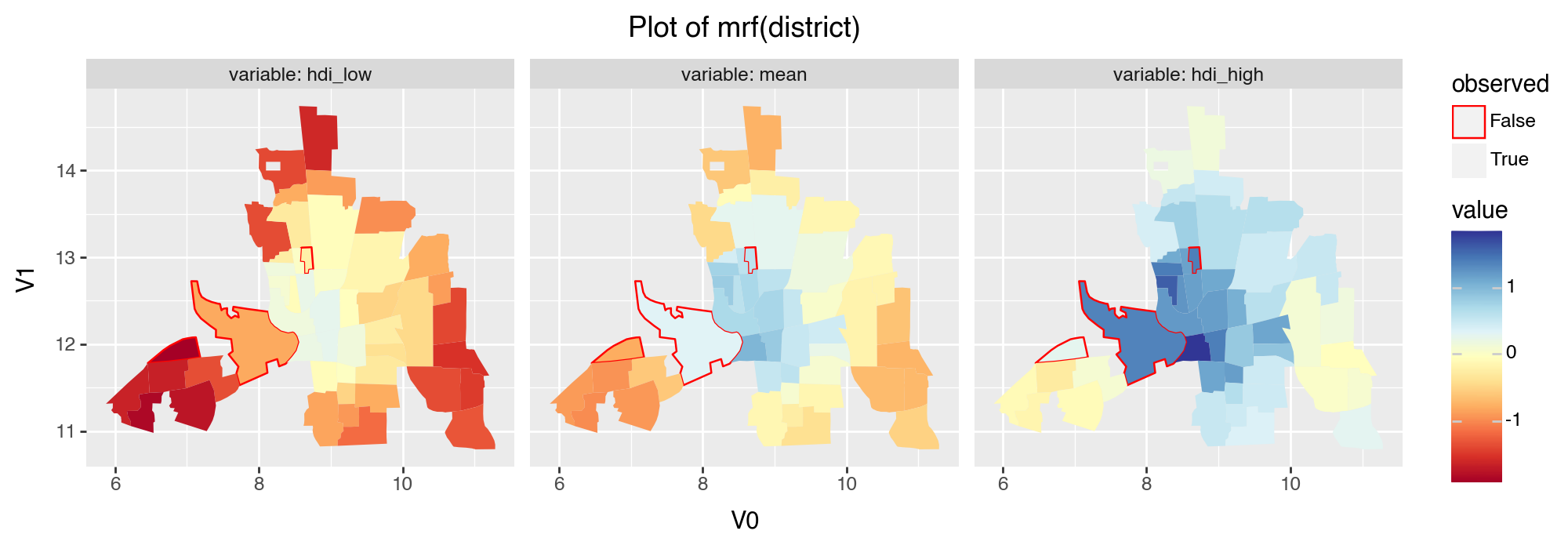

    gam.plot_regions(
        term=loc.terms["mrf(district)"],
        samples=samples,
        polys=polys,
        which=["hdi_low", "mean", "hdi_high"],
        observed_color="none",
        unobserved_color="red",
        # show_unobserved=False
    )
    + p9.theme(figure_size=(10, 3.5))
    + p9.scale_fill_cmap("RdYlBu")
)

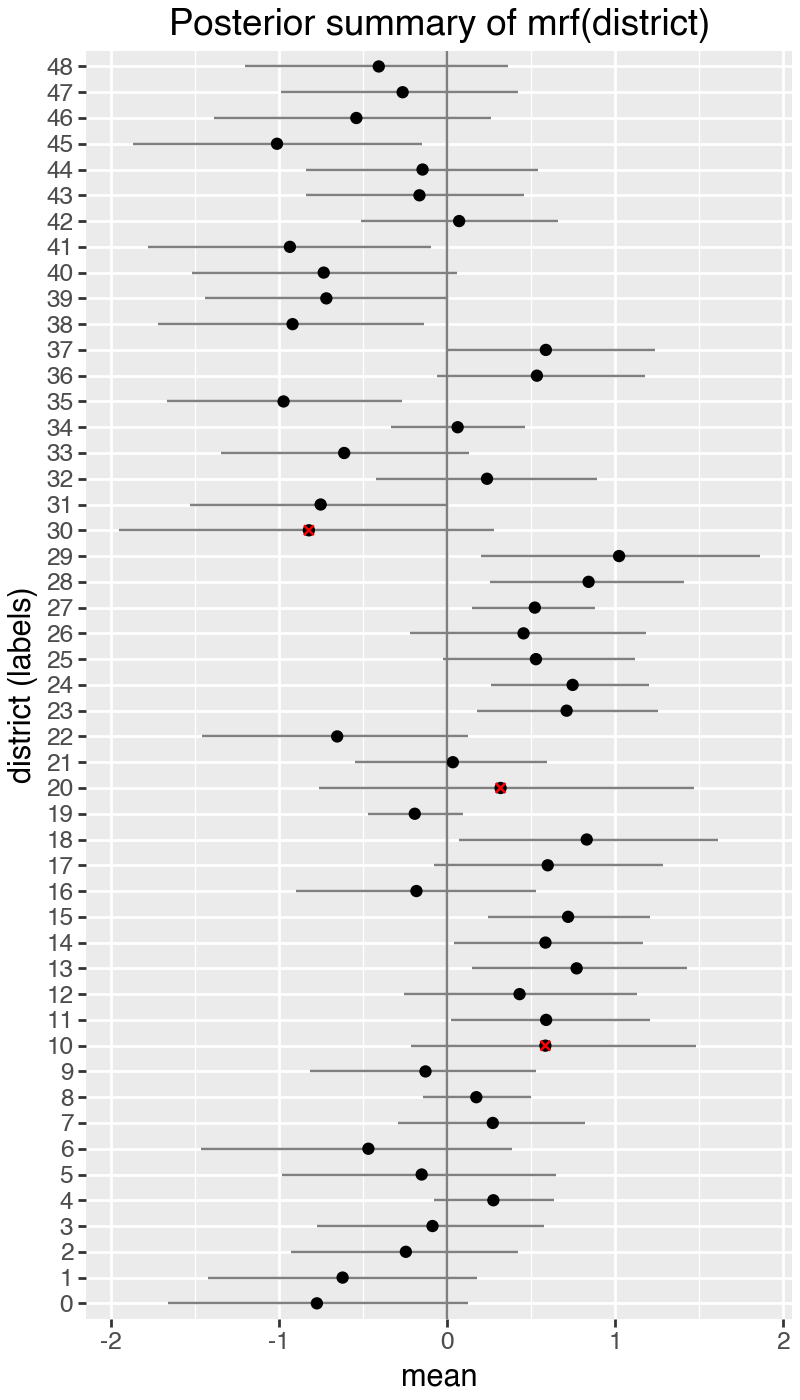

gam.plot_forest(
    term=loc.terms["mrf(district)"],
    samples=samples,
    ymin="q_0.05",
    ymax="q_0.95",
    show_unobserved=True,
) + p9.theme(figure_size=(4, 7))
