VC: Varying Coefficient

Contents

VC: Varying Coefficient#

Setup and Imports#

import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel_gam as gam

# import data from R
from ryp import r, to_py

r("library(mgcv)")
r("data(columb)")
r("data(columb.polys)")

columb = to_py("columb", format="pandas").reset_index()
polys = to_py("columb.polys", format="numpy")

Loading required package: nlme
This is mgcv 1.9-3. For overview type 'help("mgcv-package")'.

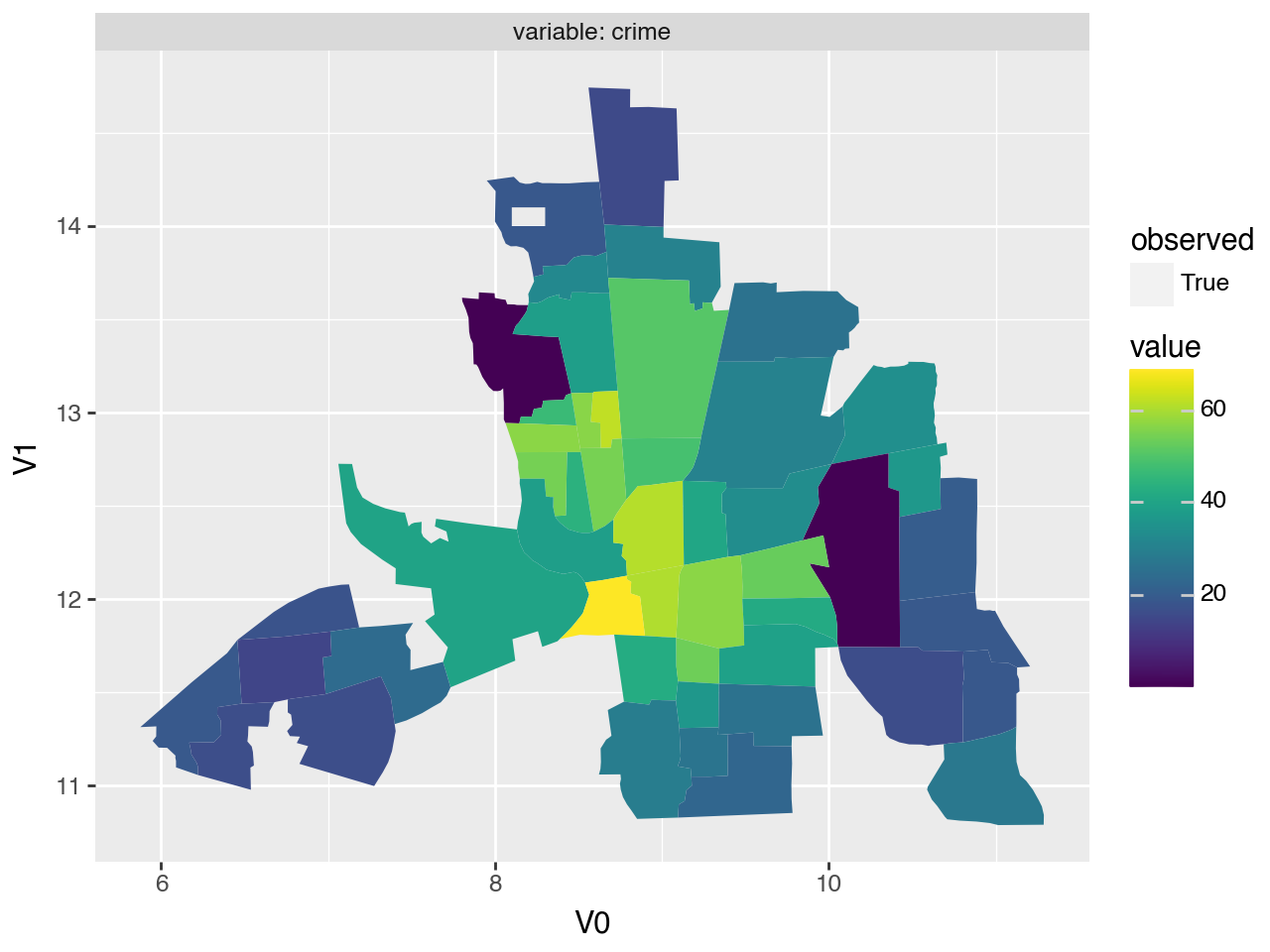

gam.plot_polys(region="district", which=["crime"], df=columb, polys=polys)

../../_images/bff0a7031228fc1f1dac19733600a30726650e9ebd9220cd8747aa2b41b11a69.png

columb.head()

	index	area	home.value	income	crime	open.space	district	x	y	label	observed
0	0	0.309441	80.467003	19.531	15.725980	2.850747	0	8.827218	14.369076	0	True
1	1	0.259329	44.567001	21.232	18.801754	5.296720	1	8.332658	14.031624	1	True
2	2	0.192468	26.350000	15.956	30.626781	4.534649	2	9.012265	13.819719	2	True
3	3	0.083841	33.200001	4.477	32.387760	0.394427	3	8.460801	13.716962	3	True
4	4	0.488888	23.225000	11.252	50.731510	0.405664	4	9.007982	13.296366	4	True

Model Definition#

df = columb
tb = gam.TermBuilder.from_df(df)

loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)


y = lsl.Var.new_obs(
    value=df.crime.to_numpy(),
    distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
    name="y",
)

loc += tb.lin("area")

# I use scale=1.0 for demo; otherwise there's no nonlinearity
smooth = tb.ps("income", scale=1.0, k=20)
loc += tb.vc("area", by=smooth)

Build and plot model#

model = lsl.Model([y])

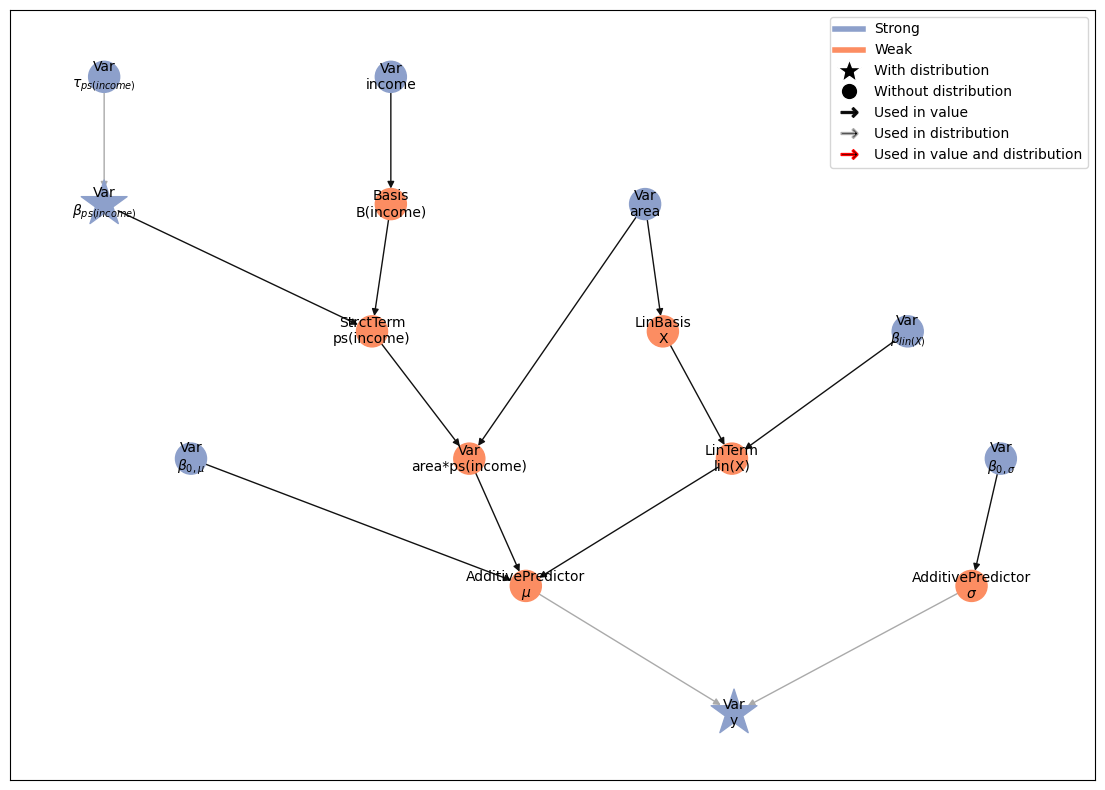

model.plot_vars()

liesel.model.model - INFO - Converted dtype of Value(name="y_value").value

../../_images/821548d47e12d62bc672a91c832e94e6f05d83c2fb2b34893a03989931a39695.png

Run MCMC#

eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)

eb.add_burnin(3000)
eb.add_posterior(10_000, thinning=10)

engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{ps(income)}$', '$\\beta_{lin(X)}$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: BURNIN, 3000 transitions, 1000 jitted together
100%|██████████████████████████████████████████| 3/3 [00:03<00:00,  1.05s/chunk]
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 10000 transitions, 1000 jitted together
100%|████████████████████████████████████████| 10/10 [00:00<00:00, 10.01chunk/s]
liesel.goose.engine - INFO - Finished epoch

MCMC summary#

summary = gs.Summary(results)
summary

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
$\beta_{0,\mu}$	()	kernel_01	43.391140	3.366579	37.937537	43.370134	48.945009	4000	2411.448336	3362.116664	1.000702
$\beta_{0,\sigma}$	()	kernel_00	2.578274	0.107992	2.404410	2.575065	2.767230	4000	3721.120953	3719.728872	0.999620
$\beta_{lin(X)}$	(0,)	kernel_03	-35.269196	15.168326	-60.310472	-35.178322	-10.583267	4000	2241.893591	3284.642761	1.001789
$\beta_{ps(income)}$	(0,)	kernel_02	0.021969	1.004871	-1.596882	0.028648	1.737700	4000	3908.197582	4053.404557	0.999797
	(1,)	kernel_02	-0.036039	1.001104	-1.660604	-0.039733	1.576322	4000	3574.884123	3621.987359	0.999895
	(2,)	kernel_02	0.014698	1.013416	-1.673915	0.014581	1.694197	4000	3779.472613	3564.219279	1.000904
	(3,)	kernel_02	0.028991	1.004531	-1.623405	0.025629	1.702308	4000	4000.345735	3908.048134	0.999788
	(4,)	kernel_02	-0.001196	0.965355	-1.570153	-0.006431	1.624117	4000	3796.446290	3972.726172	0.999813
	(5,)	kernel_02	-0.025677	1.008663	-1.701040	-0.035333	1.621115	4000	4002.483911	3724.568115	0.999961
	(6,)	kernel_02	-0.024267	1.008338	-1.668561	-0.006960	1.638577	4000	3876.955717	3839.455076	0.999404
	(7,)	kernel_02	-0.009935	0.992258	-1.650928	-0.000927	1.606830	4000	3927.522120	3910.823750	1.000244
	(8,)	kernel_02	0.041307	0.965528	-1.542792	0.044304	1.633256	4000	3891.836037	3888.981465	0.999798
	(9,)	kernel_02	-0.021953	0.980754	-1.597951	-0.020468	1.609202	4000	3897.169620	3822.694475	0.999709
	(10,)	kernel_02	0.004618	0.997596	-1.602746	0.001373	1.640568	4000	3690.435128	3918.456156	1.000368
	(11,)	kernel_02	-0.006033	0.978728	-1.610733	-0.015630	1.597220	4000	3784.525304	3918.513384	1.000226
	(12,)	kernel_02	0.049197	0.995806	-1.603548	0.048111	1.685111	4000	3878.068795	3914.805969	0.999967
	(13,)	kernel_02	-0.090835	0.992792	-1.722934	-0.076297	1.522597	4000	3710.183565	3909.855047	0.999696
	(14,)	kernel_02	0.154257	0.978700	-1.458221	0.136620	1.769688	4000	3716.395131	3973.648679	1.000251
	(15,)	kernel_02	-0.218342	0.956908	-1.826052	-0.217859	1.342845	4000	3498.112953	3890.556821	1.000828
	(16,)	kernel_02	0.694740	0.926384	-0.831754	0.712509	2.191217	4000	3868.663743	4008.891208	1.000165
	(17,)	kernel_02	0.668956	0.640261	-0.388318	0.675546	1.710092	4000	3856.886357	3900.257724	0.999956
	(18,)	kernel_02	-10.438582	2.636226	-14.879080	-10.376647	-6.037162	4000	3606.876497	3827.181345	0.999523

Plots#

samples = results.get_posterior_samples()

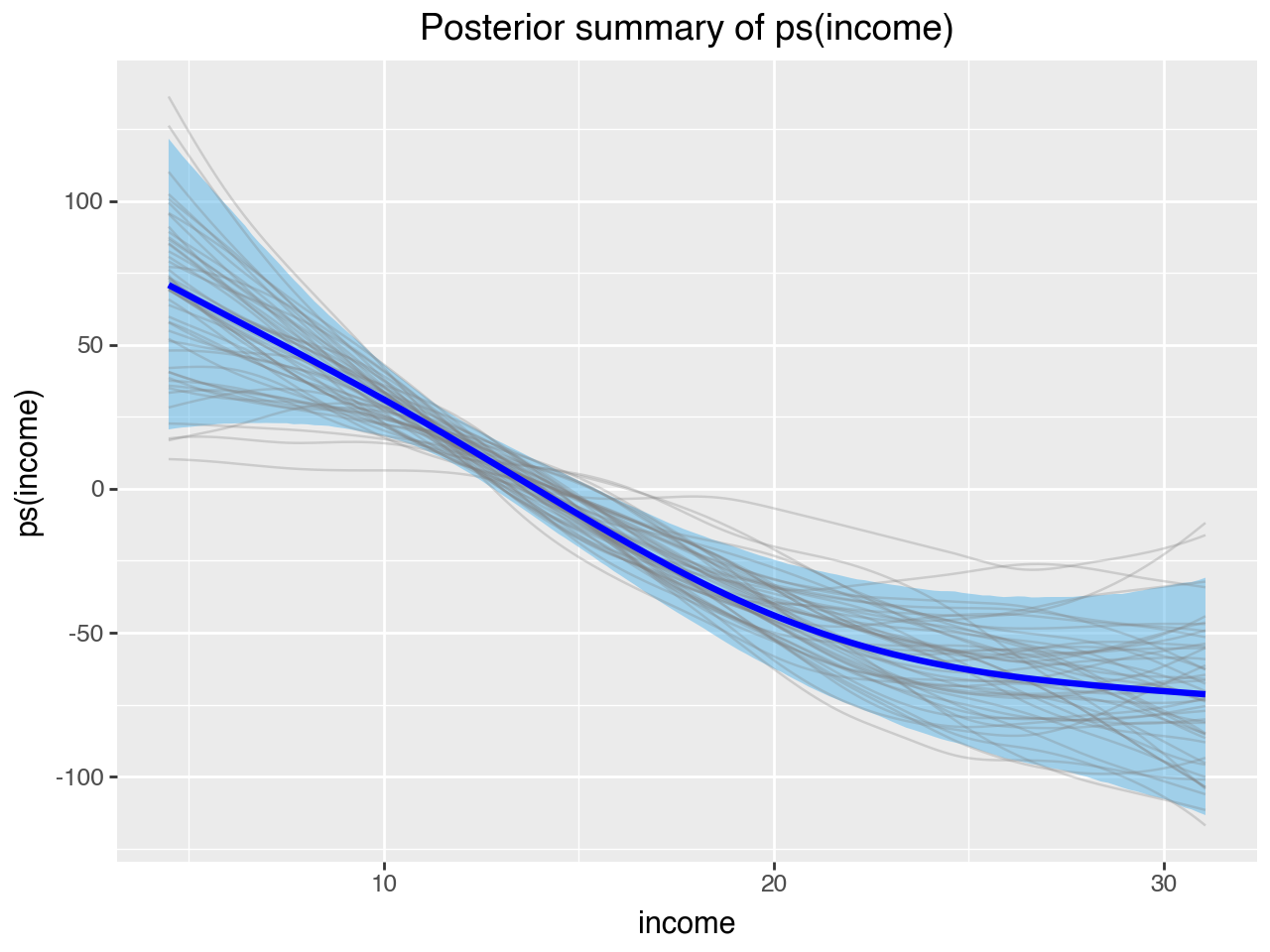

gam.plot_1d_smooth(term=model.vars["ps(income)"], samples=samples)

../../_images/ab5814347dd3a438daf8cc1604b25d94d33d8574cc3238c2f65547372f5f2cd7.png
