TP: 2d Thin Plat Spline

Setup and Imports

import jax.numpy as jnp
import liesel.goose as gs
import liesel.model as lsl
import matplotlib.pyplot as plt
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel_gam as gam

import jax

jax.config.update("jax_enable_x64", True)

df = gam.demo_data_ta(n=600, noise_sd=0.25, seed=42)
df_grid = gam.demo_data_ta(n=5000, grid=True)

plt.figure(figsize=(6, 5))
plt.scatter(df["x"], df["y"], c=df["z"])
plt.xlabel("x")
plt.ylabel("y")
plt.title("2D Color Plot")
plt.colorbar(label="eta")
plt.tight_layout()
plt.show()

plt.figure(figsize=(6, 5))
plt.scatter(df_grid["x"], df_grid["y"], c=df_grid["eta"])
plt.xlabel("x")
plt.ylabel("y")
plt.title("2D Color Plot")
plt.colorbar(label="eta")
plt.tight_layout()
plt.show()

Model Definition

Setup response model

loc = gam.AdditivePredictor("$\\mu$")
scale = gam.AdditivePredictor("$\\sigma$", inv_link=jnp.exp)


z = lsl.Var.new_obs(
    value=df.z.to_numpy(),
    distribution=lsl.Dist(tfd.Normal, loc=loc, scale=scale),
    name="z",
)

tb = gam.TermBuilder.from_df(df)

loc += tb.tp("x", "y", k=50)

Build and plot model

model = lsl.Model([z], to_float32=False)

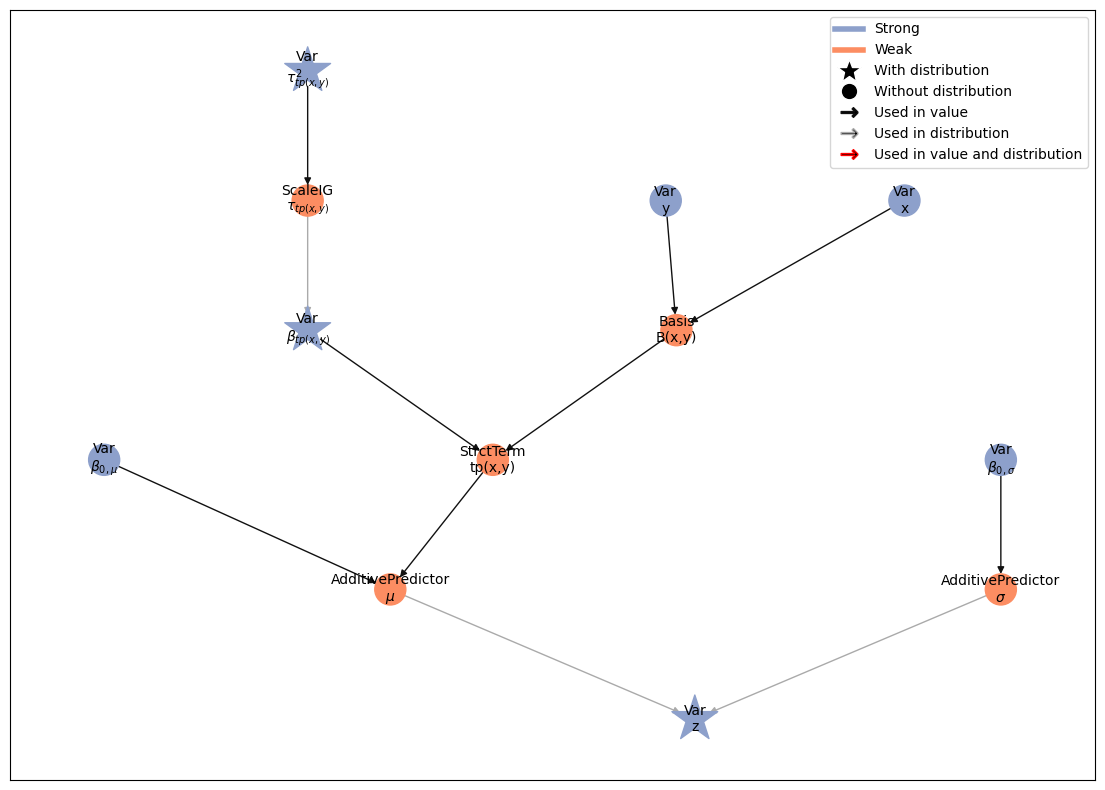

model.plot_vars()

Run MCMC

eb = gs.LieselMCMC(model).get_engine_builder(seed=1, num_chains=4)

eb.add_burnin(3000)
eb.add_posterior(10_000, thinning=10)

engine = eb.build()
engine.sample_all_epochs()
results = engine.get_results()

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{0,\\sigma}$', '$\\beta_{0,\\mu}$', '$\\beta_{tp(x,y)}$', '$\\tau_{tp(x,y)}^2$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: BURNIN, 3000 transitions, 1000 jitted together
100%|██████████████████████████████████████████| 3/3 [00:02<00:00,  1.15chunk/s]
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 10000 transitions, 1000 jitted together
100%|████████████████████████████████████████| 10/10 [00:07<00:00,  1.42chunk/s]
liesel.goose.engine - INFO - Finished epoch

MCMC summary

summary = gs.Summary(results)

diagnostics = (
    summary.to_dataframe()
    .reset_index()
    .loc[:, ["variable", "rhat", "ess_bulk", "ess_tail"]]
    .groupby("variable", as_index=False)
    .agg(
        ess_bulk_min=("ess_bulk", "min"),
        ess_bulk_median=("ess_bulk", "median"),
        ess_tail_min=("ess_tail", "min"),
        ess_tail_median=("ess_tail", "median"),
        rhat_max=("rhat", "max"),
        rhat_median=("rhat", "median"),
    )
)
diagnostics

	variable	ess_bulk_min	ess_bulk_median	ess_tail_min	ess_tail_median	rhat_max	rhat_median
0	$\beta_{0,\mu}$	3939.966762	3939.966762	3914.127419	3914.127419	1.000291	1.000291
1	$\beta_{0,\sigma}$	3831.141762	3831.141762	3721.044012	3721.044012	0.999664	0.999664
2	$\beta_{tp(x,y)}$	2659.992156	3150.464822	3106.133761	3520.405328	1.002207	1.000427
3	$\tau_{tp(x,y)}^2$	3403.701248	3403.701248	3570.692099	3570.692099	1.000384	1.000384

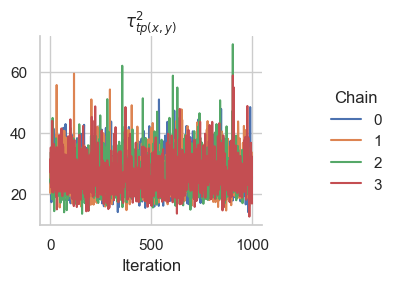

gs.plot_trace(results, [n for n in model.parameters if "tau" in n])

<seaborn.axisgrid.FacetGrid at 0x133ad92b0>

samples = results.get_posterior_samples()

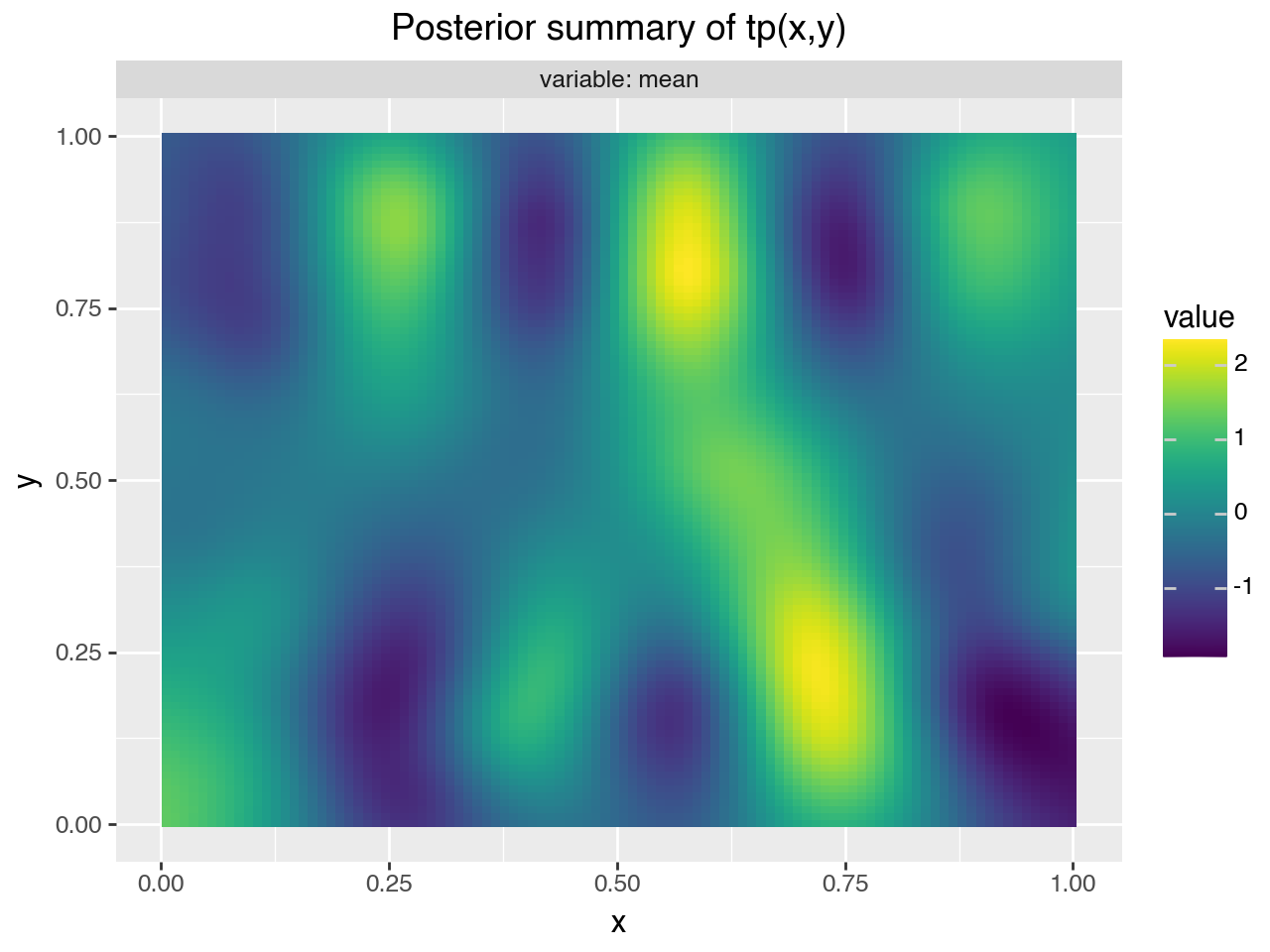

gam.plot_2d_smooth(model.vars["tp(x,y)"], samples, ngrid=100)
